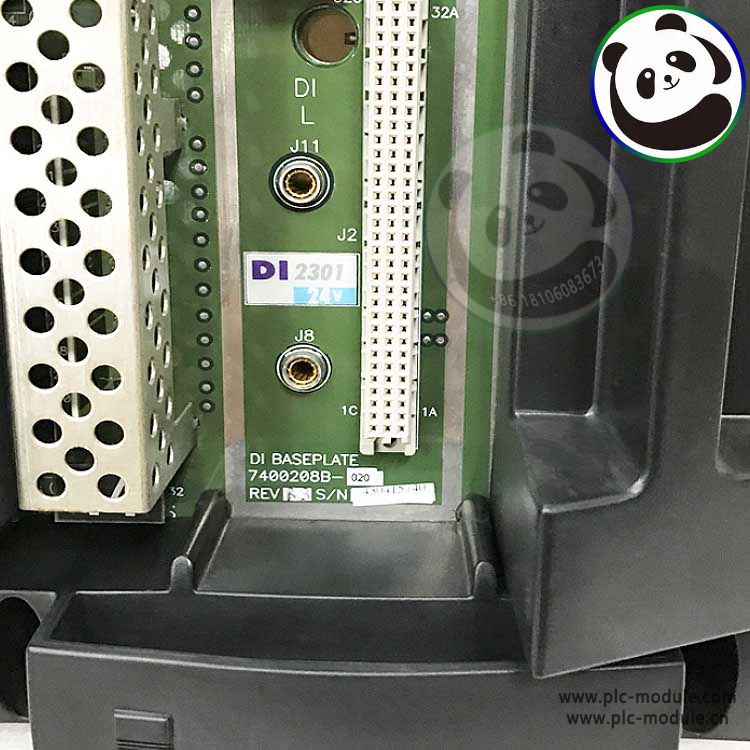

Analog Output Modules and Baseplates：TRICONEX 2301 DI BASEPLATE DI2301 24V / 7400208B-020 / The Trident supports a range of modules for applications with low point counts and distributed I/O.  Each Analog Input/Digital Input (AI/DI) Module has three isolated channels which independently process analog and digital inputs from field devices. Each channel transmits the data to the MP associated with the channel. 2301  belongs to Digital Input Baseplate Kit / I/O Baseplate I/O Interconnect Assembly Slot Cover Terminal Cover

TRICONEX Standard Trident Products：

5101 Main Processor TriPak 3 1 Main Processor Module Main Processor Baseplate Kit 3101 2101

5201 Communication Module TriPak 1 1 Communication Module  Communication Module Baseplate Kit 3201 2201

5351 Analog Input TriPak 1 1 Analog Input Module Analog Input Baseplate Kit 3351 2351

5361 Analog Input/Digital Input TriPak 1 1 Analog Input/Digital Input Module Analog Input/Digital Input Baseplate Kit 3361 2361

5352 Analog Input Tripak (RTD/TC/4-20 mA) 1 1 Analog Input Module Analog Input Baseplate (RTD/TC/4-20 mA) 3351 2352

5381 Analog Output TriPak 1 1 Analog Output Module AO Module Baseplate Kit 3481 2481

5382 High-Current Analog Output Tripak 1 1 High-Current Analog Output Module AO Module Baseplate Kit 3482 2481

5301 Digital Input TriPak 1 1 Digital Input Module Digital Input Baseplate Kit 3301 2301

5302 Digital Input TriPak (high voltage) 1 1 Digital Input Module Digital Input Baseplate Kit (high voltage) 3301 2302

5401 Digital Output TriPak 1 1 Digital Output Module Digital Output Baseplate Kit 3401 2401

5401L Digital Output TriPak (low current) 1 1 Digital Output Module Digital Output Baseplate Kit (low current) 3401 2401L

5402 Digital Output TriPak (high voltage) 1 1 Digital Output Module Digital Output Baseplate Kit (high voltage) 3401 2402

5451 Solid-State Relay Output TriPak 1 1 Solid-State Relay Output Module Solid-State Relay Output Baseplate Kit 3451 2451

5481 Pulse Input TriPak 1 1 Pulse Input Module Pulse Input Baseplate Kit 3381 2381

2101 Main Processor Baseplate Kit 1 1 1 1 1 1 1 1 MP Baseplate MP Interconnect Assembly Trident User Documentation (hardcopy) Accessories Kit Top End Cap – I/O Top End Cap – MP Bottom End Cap – I/O Bottom End Cap – MP 3000671-100 2920 8910-2 8401 2910 2912 2911 2913

2281 I/O Bus Extender Module Kit 2 3 1 1 1 I/O Extender Module 2-ft. I/O Bus Cables (Set of 3) I/O Interconnect Assembly Top End Cap – I/O Bottom End Cap – I/O 3000678-100 4000056-002 2921 2910 2911

2291 I/O Bus Termination Kit, I/O  Baseplate 1 1 1 I/O Extender Module I/O Interconnect Assembly I/O Bus Terminator Kit 3000678-100 2921 3900064-003

2292 I/O Bus Termination Kit, MP  Baseplate 1 1 1 I/O Extender Module MP Interconnect Assembly I/O Bus Terminator Kit 3000678-100 2920 3900064-003

2301 Digital Input Baseplate Kit 1 1 1 1 I/O Baseplate I/O Interconnect Assembly Slot Cover Terminal Cover 3000673-020 2921 2900 2901

2302 Digital Input Baseplate Kit (high  voltage) 1 2 1 1 2 I/O External Termination Baseplate External Termination Panel (Solid State Relay Input) I/O Interconnect Assembly Slot Cover Interface Cable, 10 ft 3000721-300 3000762-110 2921 2900 9105-310 SSR Input Modules for use with SSR Input ETP 100 to 240 VAC 1300447-001

2302A Digital Input Baseplate Kit,  Hazardous Location 1 1 1 1 1 I/O External Termination Baseplate External Termination Panel Kit I/O Interconnect Assembly Slot Cover Terminal Cover 3000721-300 9573-610 2921 2900 2901

2342 Analog Input/Digital Input Baseplate  Kit, External Termination 1 1 1 1 I/O External Termination Baseplate I/O Interconnect Assembly Slot Cover Terminal Cover 3000721-130 2921 2900 2901

2342A Analog Input/Digital Input Baseplate  Kit, Hazardous Location 1 1 1 1 1 I/O External Termination Baseplate I/O Interconnect Assembly Slot Cover Terminal Cover AI/DI ETP Kit, Hazardous Location 3000721-130 2921 2900 2901 9793-610

2351 Analog Input Baseplate Kit 1 1 1 1 I/O Baseplate I/O Interconnect Assembly Slot Cover Terminal Cover 3000675-010 2921 2900 2901

2352 Analog Input Baseplate Kit for TC,  RTD, and 4-20mA (requires 2 of part  number 9764-510) 1 1 1 1 I/O External Termination Baseplate I/O Interconnect Assembly Slot Cover Terminal Cover 3000721-100 2921 2900 2901

2352A Analog Input Baseplate Kit,  Hazardous Location 1 1 1 1 1 I/O External Termination Baseplate External Termination Panel Kit I/O Interconnect Assembly Slot Cover Terminal Cover 3000721-100 9792-310 2921 2900 2901

2354 Analog Input HART Baseplate Kit 1 1 1 1 I/O HART Baseplate MP Interconnect Assembly Slot Cover Terminal Cover 3000851-010 2920 2900 2901

2354A Analog Input HART Hazardous  Location Baseplate Kit—ATEX 1 1 1 1 I/O HART Baseplate MP Interconnect Assembly Slot Cover Terminal Cover 3000851-110 2920 2900 2901

2361 Analog Input/Digital Input Baseplate  Kit 1 1 1 1 I/O Baseplate I/O Interconnect Assembly Slot Cover Terminal Cover 3000675-020 2921 2900 2901

2381 Pulse Input Baseplate Kit

2401 Digital Output Baseplate Kit

2401L Digital Output Baseplate Kit (low  current)

2402 Digital Output Baseplate Kit (high  voltage)

2402A Digital Output Baseplate Kit,  Hazardous Location

2451 Solid-State Relay Output Baseplate  Kit

2480A Analog Output Baseplate Kit,  Hazardous Location

2481 Analog Output Baseplate Kit

2483 Analog Output HART Baseplate Kit

2483A Analog Output HART Hazardous  Location Baseplate Kit—ATEX

8401 Trident Accessory Kit

9573-610 Digital Input Termination Panel Kit,  Hazardous Location (for use with Model 2302A)

9671-610 Digital Output Termination Panel  Kit, Hazardous Location (for use with Model 2402A)

9764-510 RTD/TC/AI Termination Panel Kit  (for use with Model 2352)

9792-310 Analog Input Termination Panel Kit,  Hazardous Location (for use with Model 2352A)

9793-610 Analog Input/Digital Input  Termination Panels Kit, Hazardous  Location (for use with Model 2342A)

9863-610 Analog Output Termination Panel  Kit, Hazardous Location (for use with Model 2480A)

Triconex 4850 Triconex 4850 HART Multiplexer

7254-8 TriStation 1131 Developer’s  Workbench version 4.5

7255-8 TriStation 1131 Developer’s  Workbench version 4.5 with  CEMPLE

8910-2 Trident User Documentation  (hardcopy)

8747-8 TriStation 1131 version 4.5 User  Documentation (hardcopy)

7523-2 Triconex DDE Server 4.1.116

7521-4 SOE Recorder version 4.1

7260-4 Enhanced Diagnostic Monitor, v2.2
