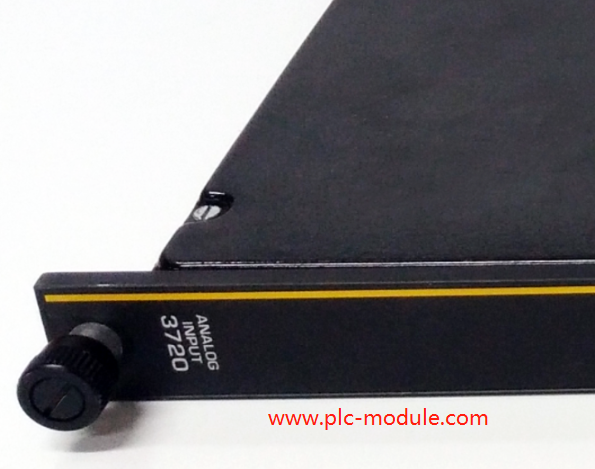

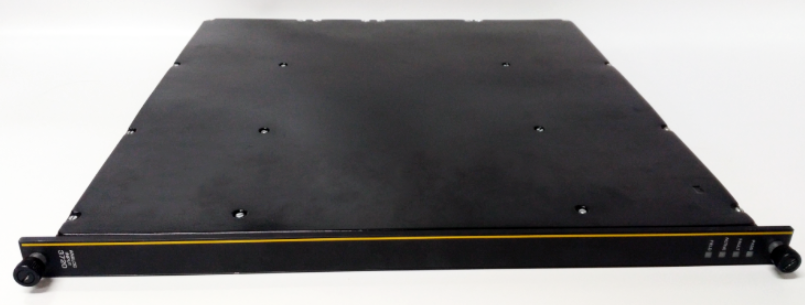

TRICON 3720 TRICONEX3720 Analog Input Tricon SIS Schneider 0-5VDC Input Overrange Protection : 150 VDC/115 VAC continuous Weight : 1.36 Kg Voltage : 0 to 5 VDC or -5 to +5 VDC1, + 6%

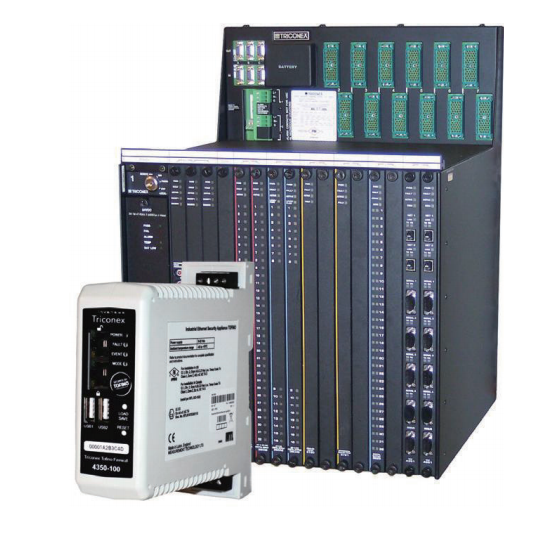

TRICONEX 3720 is a communication module used in the Tricon control system. The Tricon control system is a programmable and process control technology that provides high fault tolerance.  it has the following features:

• The main feature is the triple modular redundancy structure (TMR) that provides three identical sub-circuits, each performing an independent degree of control. A dedicated hardware/software architecture is used for "voting" on input and output.

• The Tricon control system can tolerate harsh industrial environments.
• The Tricon control system can be installed and repaired at the module level online on-site without disturbing the field wiring.
• It supports up to 118 I/O modules (analog and digital) and optional communication modules. Communication modules can connect to Modbus hosts and dependents, or to Foxboro and Honeywell Distributed Control System (DCS), other Tricons in a peer-to-peer network, and external hosts on a TCP/IP network.
• It can support remote I/O modules located up to 12 km away from the mainframe

Manufacturer : Triconex

Product No. : 3720

Product type : Analog Input Module

Voltage : 0 to 5 VDC or -5 to +5 VDC1, + 6%

No. of Input Points : 32 differential, DC-coupled

Input Update Rate : 10 ms

Resolution : 12 bits or 14 bits programmable

Accuracy : < 0.15% of FSR from 0° to 60° C

Common Mode Rejection : -85 dB (DC – 100 Hz)

Input Overrange Protection : 150 VDC/115 VAC continuous

Weight : 1.36 Kg

Shipping Weight : 4 Kg
