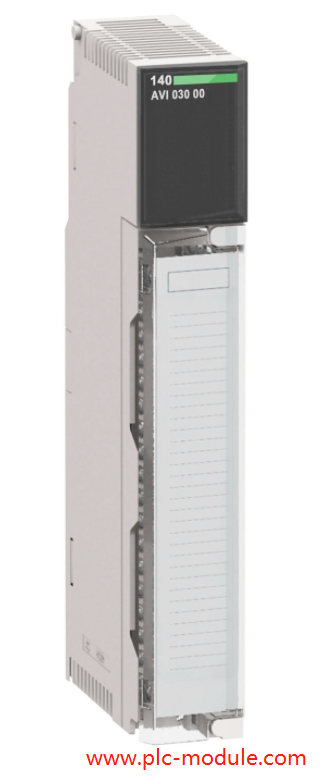

SCHNEIDER 140AVI03000 analog input module Modicon Quantum

质保： 365天
质量：原装模组
状况：全新/二手
仓库：现货
发货时间：付款后3天内发货
在线咨询

.很多产品暂未上架更多产品请联系我们

.如产品型号与展示图片不一致，以型号为准。具体产品图片联系我们，我们会安排到仓库拍照确认

.我们在全球有16个共享仓库，所以有时需要几个小时才能给您准确答复，当然，我们会尽快回复您的疑虑

SCHNEIDER 140AVI03000 analog input module Modicon Quantum - 8 I multirange

Main
range of product	Modicon Quantum automation platform
product or component type	Analogue input module
type of filter	Single pole low pass - 3 dB at 847 Hz +/- 20 %

Complementary
analogue input number	8
input type	Differential
addressing requirement	9 input words
analogue input type	Bipolar current: 20 mA Bipolar voltage: +/- 10 V Bipolar voltage: +/- 5 V Unipolar current: 0...20 mA Unipolar voltage: 0...10 V Unipolar voltage: 0...5 V
analogue input resolution	16 bits +/- 10 V 16 bits +/- 5 V 16 bits 0...10 V 16 bits 0...20 mA 16 bits 0...5 V 16 bits 20 mA
linear measuring range	(Input range) x 1.024 mA (input range) x 1.024 V
absolute maximum input	50 V DC 25 mA
input impedance	> 20 Ohm voltage 250 MOhm +/- 0.03 %
absolute accuracy error	+/- 0.03 % +/- 0.05 % of full scale maximum
linearity error	+/- 0.008 %
accuracy drift according to temperature	+/- 0.0015 % of full scale/°C <= 0.004 % of full scale /°C
common mode rejection	> - 80 dB 60 Hz
isolation between channels and bus	500 Vrms AC for 60 s 750 V DC
isolation between channels	135 Vrms AC 200 V DC
update time	10 ms
fault type	Broken wire 4...20 mA Overtacking scale 1...5 V
Marking	CE
local signalling	1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault 8 LEDs (green) for channel is turned on 8 LEDs (red) for channel fault
bus current requirement	280 mA
power dissipation in W	2.2 W
module format	Standard
Net weight	0.3 kg

Environment
Standards	UL 508 CSA C22.2 No 142
product certifications	FM Class 1 Division 2 cUL
resistance to electrostatic discharge	4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2
resistance to electromagnetic fields	10 V/m 80…1000 MHz conforming to IEC 801-3
Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-40…85 °C
relative humidity	95 % without condensation
Operating altitude	<= 5000 m
