REXROTH FCS01.1E-W0011-A-04-NNBV R911311065 AC Inverter Drive Speed Controller

质保: 365天
质量:原装模组
状况: 全新/二手
仓库:现货
发货时间:付款后3天内发货
在线咨询
  • 产品详情

    .很多产品暂未上架 更多产品请联系我们

    .如产品型号与展示图片不一致,以型号为准。具体产品图片联系我们,我们会安排到仓库拍照确认

    .我们在全球有16个共享仓库,所以有时需要几个小时才能给您准确答复,当然,我们会尽快回复您的疑虑

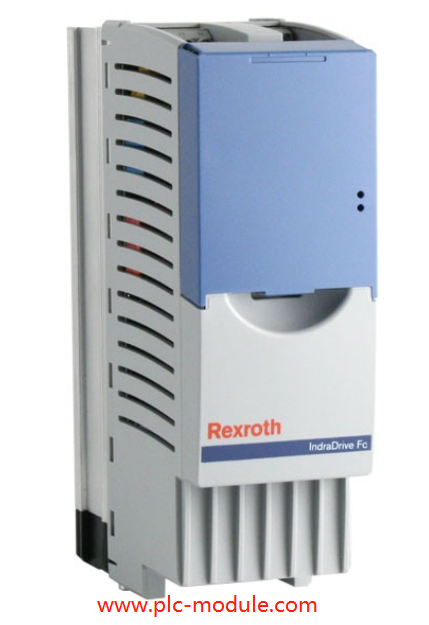

    REXROTH FCS01.1E-W0011-A-04-NNBV R911311065 Bosch Rexroth IndraDrive Fc 2.2kW 400V 3ph - AC Inverter Drive Speed Controller

    R911311065 refers to a Bosch Rexroth IndraDrive Fc AC frequency inverter. It is designed for a 2.2kW (3.0HP) 400V 3 Phase motor with VxF or Sensorless Vector control to 5.5A. The device has a range of features, including two analog/digital inputs, five digital inputs, one analog output, two relay contact sets, RS232, and RS485. It has a compact design and is simple to install [plc-module.cn, 2, 4]

    FCS01.1E-W0011-A-04-NNBV R911311065

    Bosch Rexroth IndraDrive Fc AC Frequency Inverter for 2.2kW (3.0HP) 400V 3 Phase motor in VxF or Sensorless Vector control to 5.5A. Simple to set-up with 400V three phase input for a standard AC Induction motor.

    No Keypad included - see linked products below for keypad options.

    Size B: 73mm Wide x 153mm Deep x 226mm high (260mm high when included wall mounting brackets are fitted) IP20.
    Weight: 1.8kg (approx).

    Overload - 150% x 60 seconds, 200% x 3.5 seconds
    Speed Control Range - 0-400Hz.
    Braking - To 130 Ohm minimum external resistor (not supplied) - See the Resistor options linked below or use the 'Which Resistor' button on this page.

    Features - 2 x Analogue/Digital Inputs, 5 x Digital Inputs, 1 x Analogue Output, 2 x Relay Contact sets, RS232, RS485.
    DC Bus terminals for Common Bus energy saving applications.
    Programmable from a PC via 'IndraWorks' software and PC Cable - see linked products below.

    Input Current - 7.7.
    Input Voltage - 380-480V Three Phase -20% +10% at 50/60Hz ±5%.
    EMC Filters to IEC/EN 55011 Class A 2nd Environment (Industrial)

    Wall mount in clean environment or cubicle mount.
    Rated at 40°C Ambient.
    Ventilation space above and below - 100mm.
    Ventilation space at sides - 0mm (drives can be mounted side by side)
    Heat Loss at max output - [not specified].
    Mounting via 2 x detachable heatsink-mounted brackets at rear (top and bottom). 1 x 5.5mm diameter hole per bracket.

    Full part number is FCS01.1E-W0011-A-04-NNBV or R911311065.
