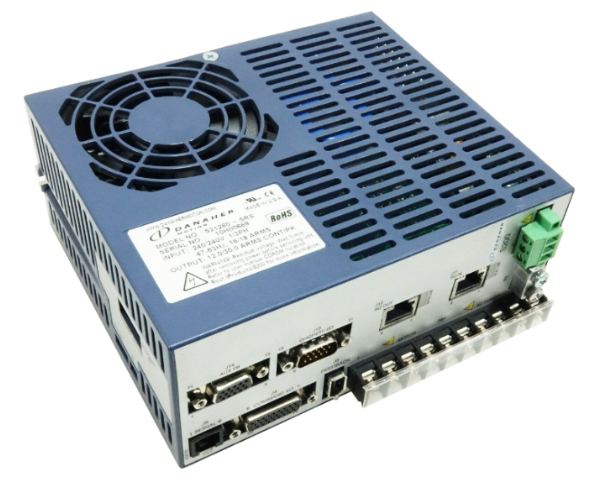

KOLLMORGEN S20360-SRS DANAHER Servo Drive Kollmorgen S200 servo drives are the first all-digital industrial drives with a velocity loop bandwidth of 800 Hz.  These compact drives offer simplified tuning and unmatched system throughput, with high-resolution feedback

FEATURES

• Available for 120/240 VAC and 20-90 VDC operation with current ratings from 1.5 Amps RMS continuous to 48 Amps RMS peak

• 24-bit high-resolution feedback

• 3-5 kHz high-performance current loop bandwidth

• Intelligent feedback device with electronic motor nameplate eliminates the need for drive parameter set-up and servo loop tuning, allowing allows plug-and-play commissioning in most applications

• Standard features include torque and velocity control base, electronic gearing, up to an 18-bit analog reference input and an encoder equivalent output

• Options available to support either indexing or SynqNet™ based programmable motion control

• Meets UL 508C, CE, EN50178, EN61800-C and Semi F47 Standards

• Separate "Keep Alive" power input allows rapid recovery from emergency stop conditions

BENEFITS

• Wide power range allows a single drive family to be deployed through-out your entire machine

• Compact footprint allows use of smaller cabinets, or mounting close to the point of use

• Optically isolated inputs/outputs, positive locking connectors and full fault protection for long machine life and immunity to accidental damage

• High performance system designed for increased machine throughput

• Easy-to-use graphical user interface reduces engineering and support time

• Reduced overall cost
