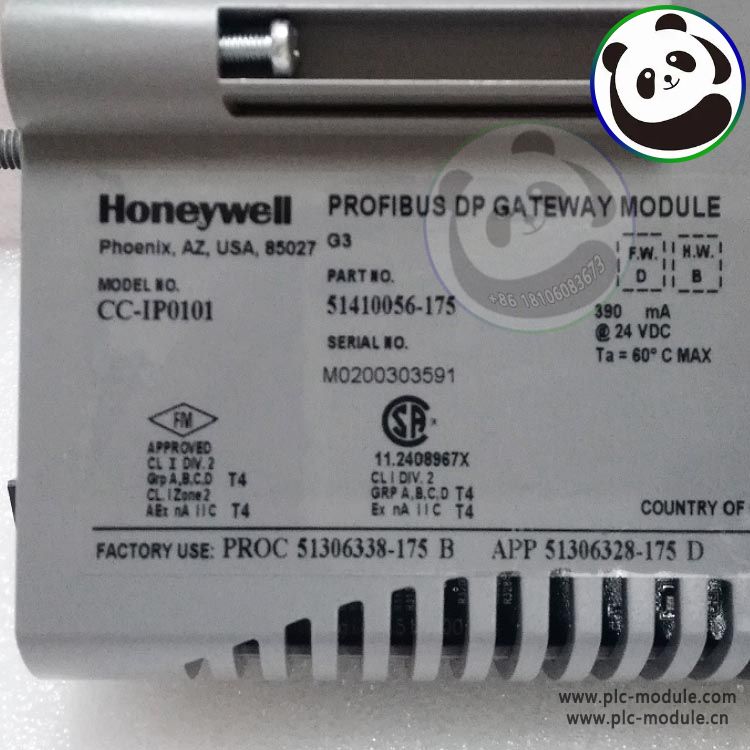

Honeywell CC-IP0101 | 51410056-175 | Profibus DP Gateway Module | C300 Controller
- Dimensions: 190 mm x 69 mm x 23 mm (7.5 in x 2.7 in x 0.9 in), ensuring compatibility with various IOTA sizes.
- Supported Devices: Capable of supporting up to 127 Profibus DP devices, making it suitable for complex automation setups.
- Communication: Supports baud rates ranging from 9.6 kbps to 12 Mbps, accommodating different data transmission requirements.
- Operation Modes: Offers both master and slave operation modes, providing flexibility in network configuration.
- Data Filtering and Monitoring: Includes the ability to filter data based on device address or data type, as well as monitor network traffic and diagnose network problems.
- Warranty: Comes with a one-year warranty, ensuring product reliability and support .
.很多产品暂未上架 更多产品请联系我们
.如产品型号与展示图片不一致，以型号为准。具体产品图片联系我们，我们会安排到仓库拍照确认
.我们在全球有16个共享仓库，所以有时需要几个小时才能给您准确答复，当然，我们会尽快回复您的疑虑
Honeywell CC-IP0101 Profibus DP Gateway Module C300 Controller.The PROFIBUS Gateway Module provides a common module platform to support the interface to the PROFIBUS DP and the C300 Controller. The PGM is developed in the Series 8 form factor for use with the C300 Controller. The Series 8 form factor employs an Input Output Termination Assembly (IOTA) and an electronics module which mounts and connects to the IOTA.As a PROFIBUS gateway, PGM is always a master and communicates with the PROFIBUS compatible slave devices. The PGM mounts in the same fashion and shares all characteristics, power and grounding, certifications, and meets all environmental rating as all other Series 8 components. The PGM is optionally redundant and supports two DP networks per module.
DOWNLOAD：
CC-IP0101.pdf
Honeywell CC-IP0101 51410056-175 Profibus DP Gateway Module C300 Controller
Key features and specifications of the Honeywell CC-IP0101 include:
-
