HIMA | F3237 | 984323702 | Input Module | F-3237

质保： 365天
质量：原装模组
状况：全新/二手
仓库：现货
发货时间：付款后3天内发货
在线咨询

产品详情

.很多产品暂未上架更多产品请联系我们

.如产品型号与展示图片不一致，以型号为准。具体产品图片联系我们，我们会安排到仓库拍照确认

.我们在全球有16个共享仓库，所以有时需要几个小时才能给您准确答复，当然，我们会尽快回复您的疑虑

HIMA | F3237 | 984323702 | Input Module | F-3237.HIMA F3237 is a digital input module that is used for safety-critical production processes. It is automatically tested completely during operation and has various test routines such as switch on and off capability, crosstalk of the input circuits by walking 0 test, function of the input filters, correct function of the module, and short circuit and wire break of the sensor line. However, the function of LEDs is not tested.F3237_Input: Used to read the status of the input channels.

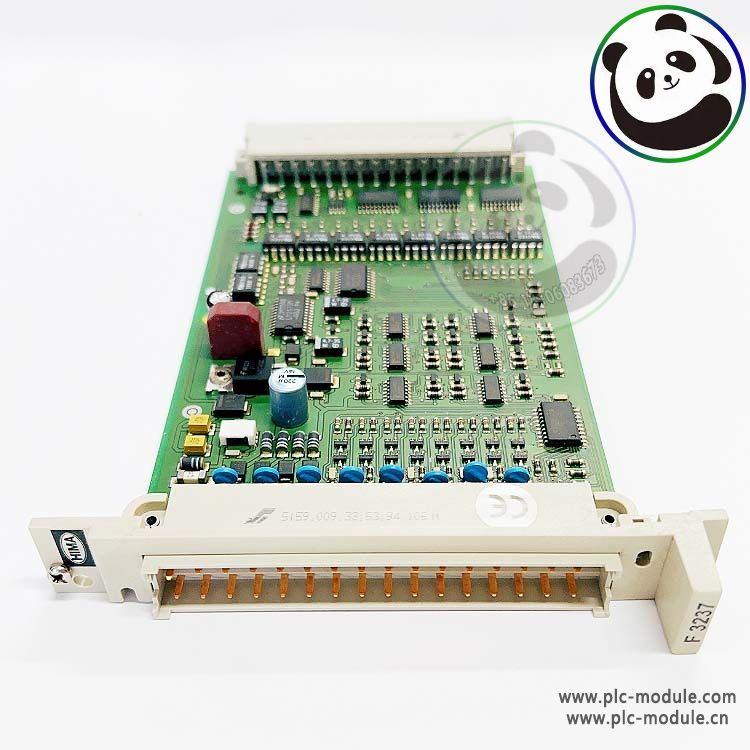

HIMA F3237 984323702 Input Module F-3237..jpg

The operating points of HIMA F3237 are as follows:

0 signal 0.35 ≤ IE ≤ 1.2 mA
1 signal 2.1 ≤ IE ≤ 6.0 mA
Wire break ≤ 0.28 mA
Short circuit ≥ 6.5 mA

The line impedance of HIMA F3237 is ≤ 50 Ohm (acc. to DIN 19234), and the line length is ≤ 1000 m (∅ = 0.5 mm2). The supply voltage of HIMA F3237 is US 8.2 V, and the shunt R* is 681 Ohm; 1 %; 0.25 W (R17 ... R24) part no. 00 0751681. The switching time of HIMA F3237 is approximately 10 ms.

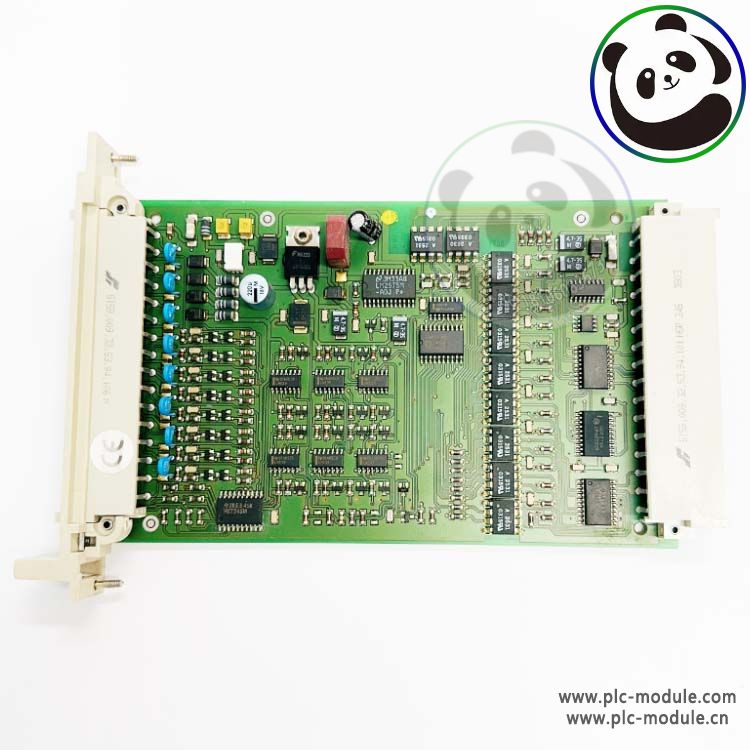

HIMA F3237 984323702 Input Module F-3237.jpg

Based on the information provided in the search results, it seems that HIMA F3237 is not available for purchase from authorized dealers or manufacturers. However, some websites claim to sell high-quality HIMA F3237 and deliver it quickly.

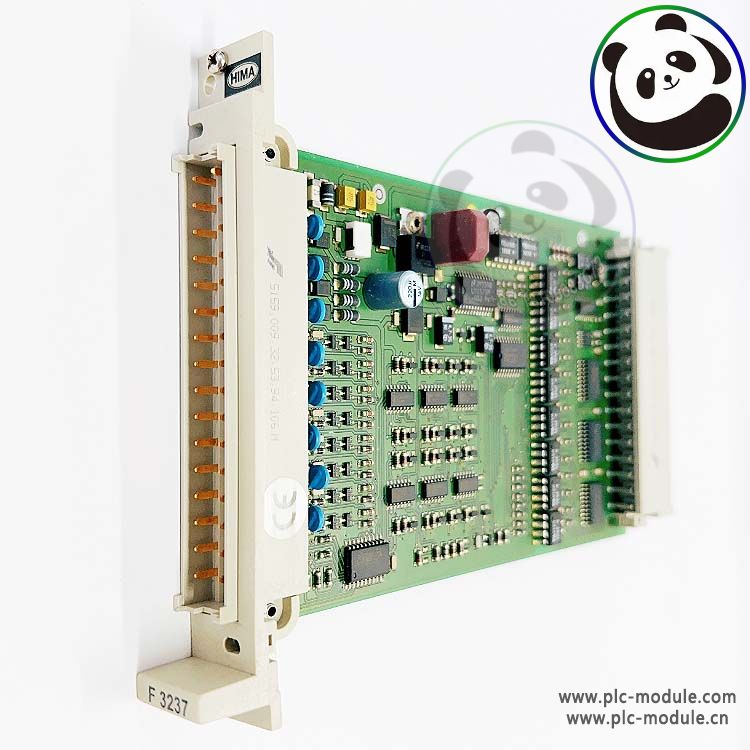

HIMA F3237 984323702 Input Module F-3237...jpg

It is important to note that HIMA F3237 is a safety-critical component, and it should be used in accordance with the manufacturer's instructions and guidelines. Any modification or misuse of the component can lead to serious safety hazards.
