HIMA F6705 | Analog Output Module | F 6705

质保： 365天
质量：原装模组
状况：全新/二手
仓库：现货
发货时间：付款后3天内发货
在线咨询

产品详情

.很多产品暂未上架更多产品请联系我们

.如产品型号与展示图片不一致，以型号为准。具体产品图片联系我们，我们会安排到仓库拍照确认

.我们在全球有16个共享仓库，所以有时需要几个小时才能给您准确答复，当然，我们会尽快回复您的疑虑

HIMA F6705 | Analog Output Module | F 6705.The HIMA F6705 Analog Output Module is a 2-fold converter digital/analog safety-related module with redundant current connection. It is used for generating analog output signals in HIMA safety systems. Here are some key points about the HIMA F6705 module:

The module has two output channels that can generate analog output signals.
The total current IG1 or IG2 to the burden RB is the sum of the individual currents I11 and I21 or I12 and I22, depending on the configuration.
The admissible burden resistance is half of the total current.
The paralleled channels must be used in the same mode, either source or sink mode.
Each output channel should generate half of the current IG to the burden for temperature error and well-balanced load considerations.

For bipolar current connection:

The total current is the sum of the individual currents: IG1 = I11 - I21 or IG2 = I12 - I22.
The admissible burden resistance remains the same.
Module 1 generates the positive part of the total current, while module 2 generates the negative part.
Only one module should generate or consume current for accuracy reasons, and this must be programmed in the user's program.

As for the compatibility of the HIMA F6705 module with other HIMA products, it is important to note that the module is designed for use with HIMA safety systems. It is compatible with various HIMA components, including:（vast inventory enables us to meet customer needs quickly,thus reducing downtime and protecting production schedules. Our prompt delivery times give you security and save you money.）

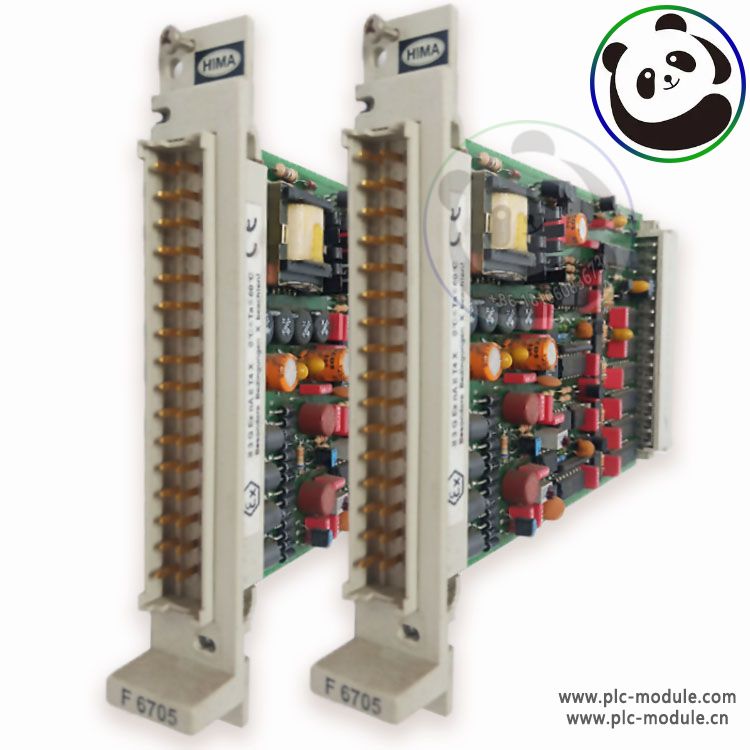

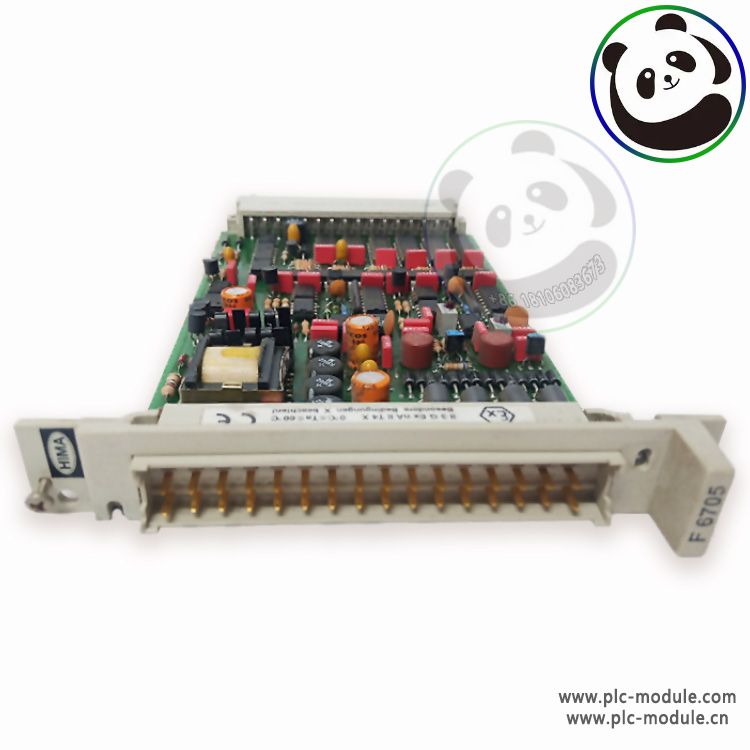

HIMA F6705 Analog Output Module.jpg

CPU: F8650X, F8650E, F8641
Power Distribution Module: F7130A, F7130, F7131, F7133
Communication MODULE Coprocessor MODULE: F8621A, F8627X, F8628, F8628X
Input Module: F3221, F3222, F3223, F3224, F3236, F3237, F6208, F6214, F6215, F6216, F6216A, F6217, F6220, F6221
Output Module: F3330, F3331, F3332, F3333, F3334, F3322, F7126, F6705, F1DI1601, F3DIO8/801, F2DO1602, F3DIO20/802, F3AIO8/401, F60GEH01, F60PS01, F60DIO24/1601, F60DI3201, Z7116, Z7126, Z7127, Z7138, Z7128
I/O bus link module block: F7553
