HIMA 黑马

HIMA Central module F8652X DCS system module, card

质保: 365天
质量:原装模组
状况: 全新/二手
仓库:现货
发货时间:付款后3天内发货
在线咨询
  • 产品详情

    .很多产品暂未上架 更多产品请联系我们

    .如产品型号与展示图片不一致,以型号为准。具体产品图片联系我们,我们会安排到仓库拍照确认

    .我们在全球有16个共享仓库,所以有时需要几个小时才能给您准确答复,当然,我们会尽快回复您的疑虑

    HIMA Central module F8652X DCS system module, card. Use in the PES H41q-MS, -HS, -HRS.Central module with two clock-synchronized microprocessors.F8652X appears to be a safety-related CPU used in control systems for hazardous environments [1]. It supports communication through a serial interface with a 9-pole RS 485 pin assignment [0]. The bus station number can be set from 1 to 31 for a serial interface and from 1 to 99 within an Ethernet network

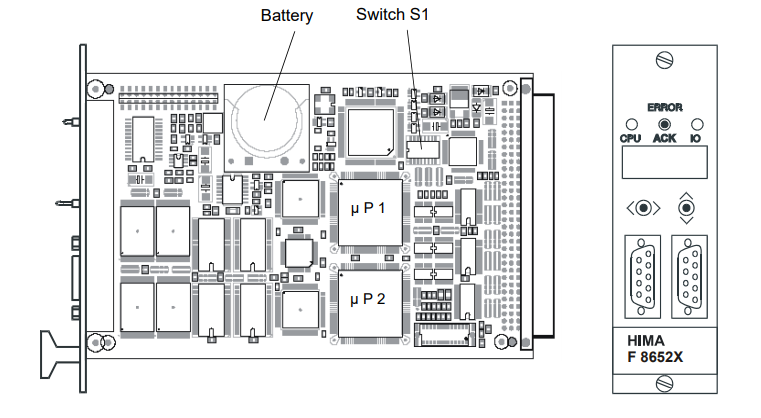

    HIMA Central module F8652X

    HIMA F8652X is known for its precise and optimal control using PID control [2]. PID (proportional-integral-derivative) control is a feedback control loop mechanism that continuously calculates an error value, which is the difference between a desired setpoint and the current process variable [5]. The PID controller then adjusts the control output based on three terms: the proportional term, the integral term, and the derivative term, to minimize the error value [5]. The proportional term adjusts the output based on the current error value, the integral term adjusts the output based on the accumulated error over time, and the derivative term adjusts the output based on the rate of change of the error value

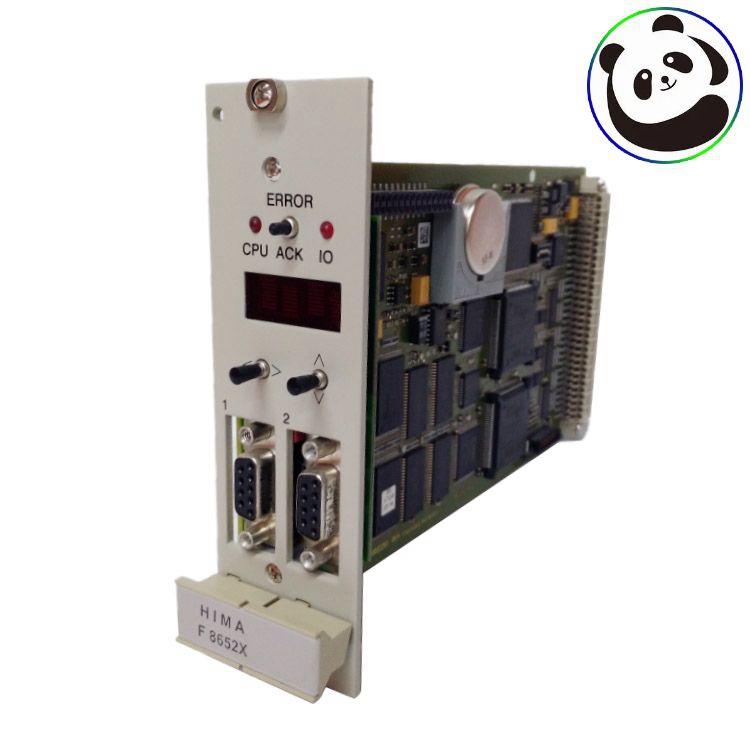

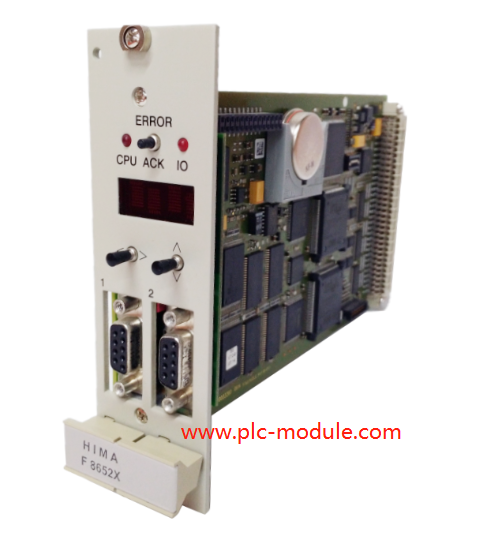

    HIMA Central module F8652X DCS system module, card

    Microprocessors INTEL 386EX, 32 bits Clock frequency 25 MHz Memory per microprocessor Operating System Flash-EPROM 1 MB User program Flash-EPROM 1 MB * Data SRAM 1 MB * * Degree of utilization depending on operating system version Interfaces Two serial interfaces RS 485 with electric isolation Diagnostic display Four digit matrix display with selectable information Shutdown on fault Safety-related watchdog with output 24 V, loadable up to 500 mA, short-circuit proof Construction Two European standard PCBs, one PCB for the diagnostic display Space requirement 8 SU Operating data 5 V / 2 A
