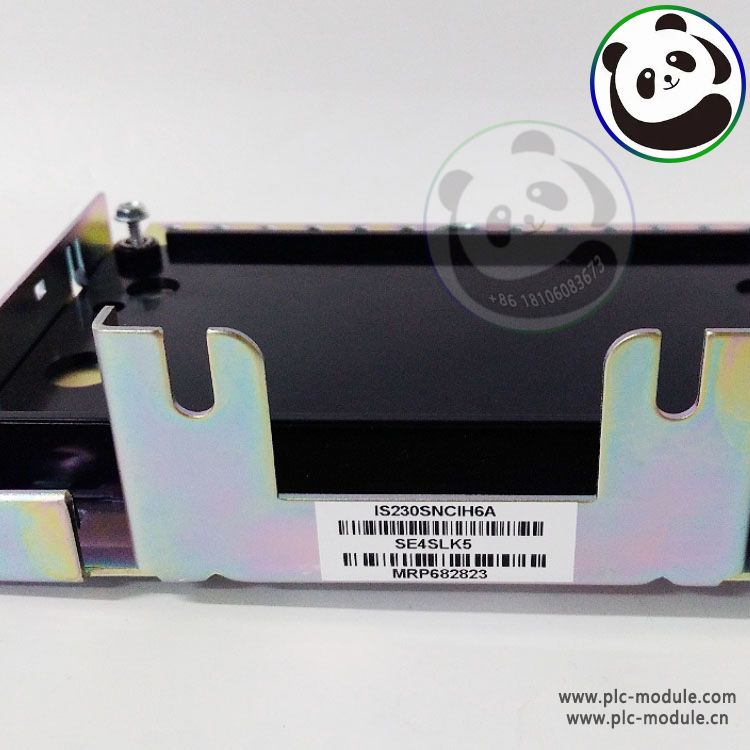

GE IS230SNCIH6A Digital Input Module Mark VIe Base module.It is a part of Mark VIe series. I/O modules are made up of three basic components: the terminal board, the terminal block, and the I/O pack. The terminal board attaches to the cabinet and is available in two basic configurations: S and T.Connect the module to power via the P5 connector and inspect the power and Ethernet status indicator lights.IS230SNCIH6A,Mark VIe,Base module   ；GE IS230SNRTH2A Gas Turbine Control Systems Base module

IS230SNCIH6A,Mark VIe,Base module

GE IS230SNCIH6A Digital Input Module Mark VIe Base module

System I/O pack details

Mark VIe I/O packs include a generic processor board and a data acquisition board that is specific to the type of connected device.

Each terminal board's I/O packs digitize the signal, run algorithms, and communicate with the Mark VIe controller. The I/O pack detects faults by combining special circuitry in the data acquisition board with software running on the CPU board. The controllers receive and process the fault status. If both network interfaces are connected, the I/O pack transmits and receives inputs and outputs. When prompted, each I/O pack sends an identification message to the main controller.

The packet contains the I/O board's hardware catalog number, hardware revision, board barcode serial number, firmware catalog number, and firmware version. The processor board and data acquisition board of the I/O pack are rated for -30°C to 65°C operation with free convection cooling.

The temperature sensor in the I/O packs is accurate to within 2°C. Each I/O pack temperature is stored in the database and can be used to trigger an alarm.
