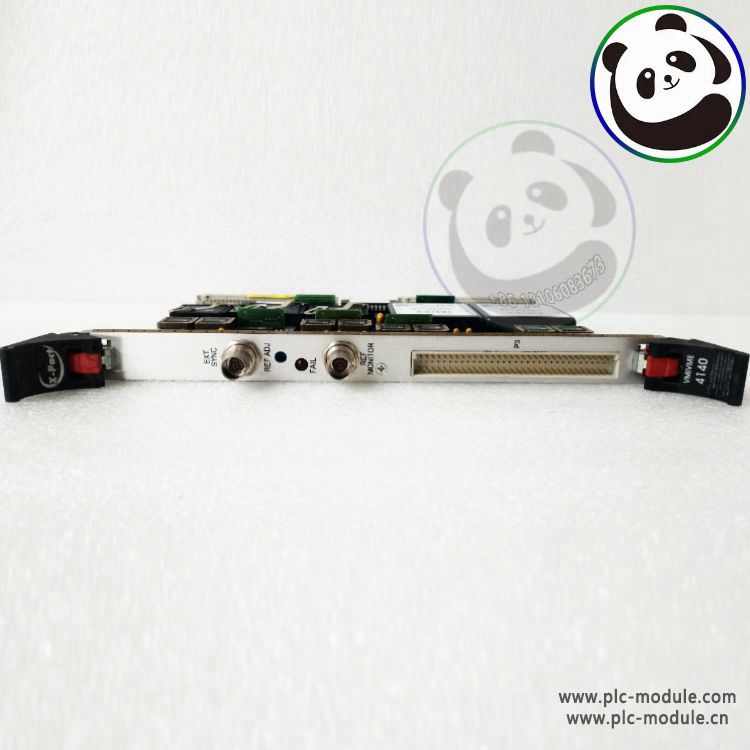

The GE VMIVME-4140 Analog Output Board is a product developed by GE Fanuc Automation. It is a 32-channel 12-bit analog output board that provides high-quality analog output channels. The board can source or sink 10 mA at ±10 V. Each output has a dedicated Digital to Analog Converter (DAC) assigned to it.(Many people are also interested in VMIVME-7750, click here)

Key features of this board include:

32 analog output channels

10mA maximum output current per channel

One 12-bit D/A converter (DAC) per output channel

0.8Ω output impedance

Random update (nonscanning)

Software or external synchronous update of double-buffered outputs

Single reference potentiometer – no other manual calibration required

Automatic calibration initiated by reset or by software command.

The board also includes extensive onboard diagnostic testing capability, self-testing, and outputs can be disconnected from the field for offline testing. Additionally, it has a front panel status LED, front panel analog output connector, and front panel reference voltage access.

In terms of physical characteristics, the board has dimensions of 6U single slot Eurocard form factor. Its weight (mass) is up to 0.7 kgm maximum. Power requirements are +5VDC at 4.0A maximum; outputs fully loaded. The board operates under various conditions such as altitude operation to 3,000m, temperature operation from 0 to +65° C, operating storage from 0 to +65° C, and relative humidity from 20% to 80%, noncondensing.

It's worth noting that the board can be connected using either discrete wire or IDC (Mass-Terminal)

GE VMIVME-4140 ANALOG OUTPUT BOARD
