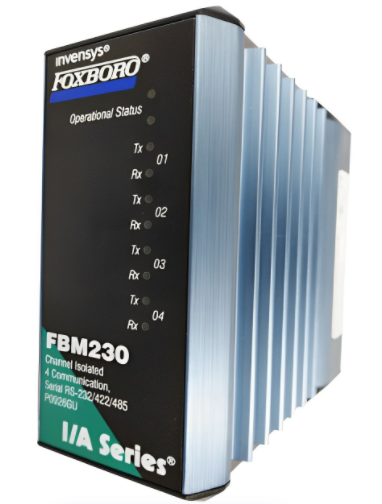

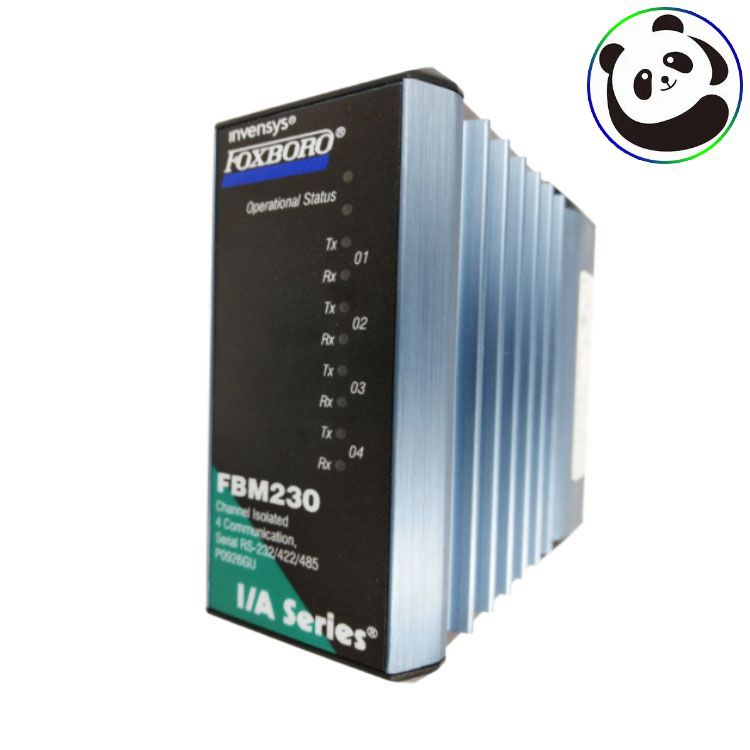

FOXBORO FBM230 P0926GU Communication Module Channel Isolated, 4 Communication, Serial RS-232/422/485 10 Mbps or 100 Mbps Ethernet network transmission rate to/from field device Communicates with up to 64 field devices I/O software driver is downloadable from a library of available protocols

Brand：FOXBORO ，Invensys

Model：FBM230

Part No：P0926GU

Product Name：Communication Module

Website:www.plc-module.com

FOXBORO FBM232 P0926GW The FBM232 Field Device System Integrator (FDSI) module provides a single Ethernet interface between single-ported field I/O devices and the Foxboro Evo™ system.

FBM232 P0926GW I/A Series Ethernet Communication Module

The FBM232 connects to a single 10 Mbps or 100 Mbps copper Ethernet network to communicate with devices. The FBM232 is connected to Ethernet switches or hubs in order to communicate with one external device or up to 64 external devices. The general network configuration is shown in Figure 1.

Key features of the FBM232 are:

10 Mbps or 100 Mbps Ethernet network transmission rate to/from field device

Communicates with up to 64 field devices I/O software driver is downloadable from a library of available protocols

Up to 2000 DCI block connections

 Integrates field device data into a Foxboro Evo control database using Ethernet connectivity

Field mounted

 Class G3 (harsh) environments.
