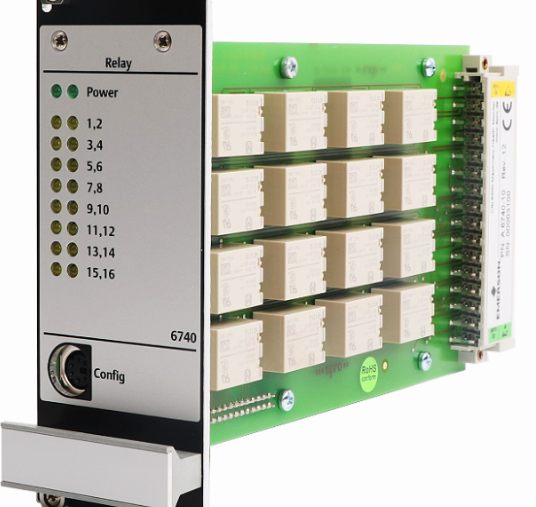

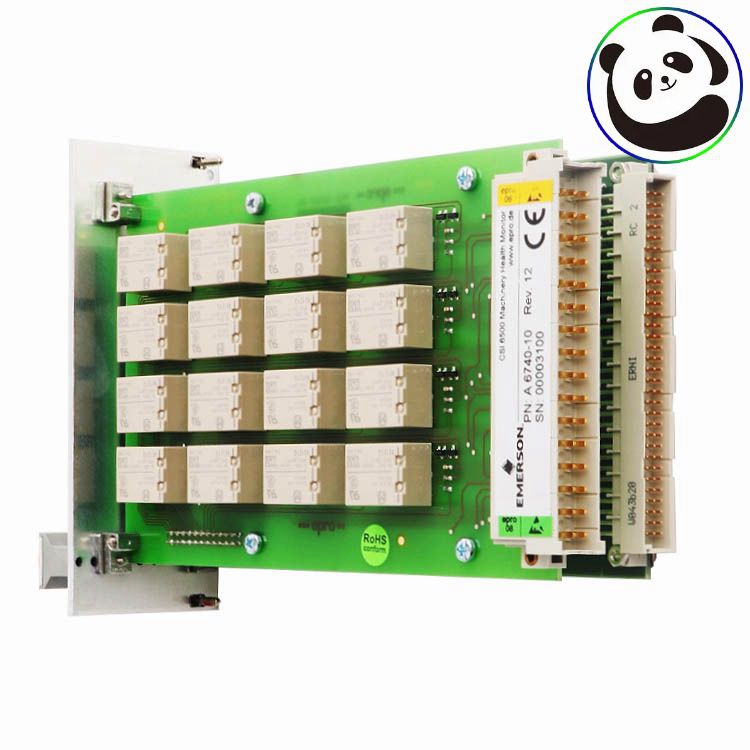

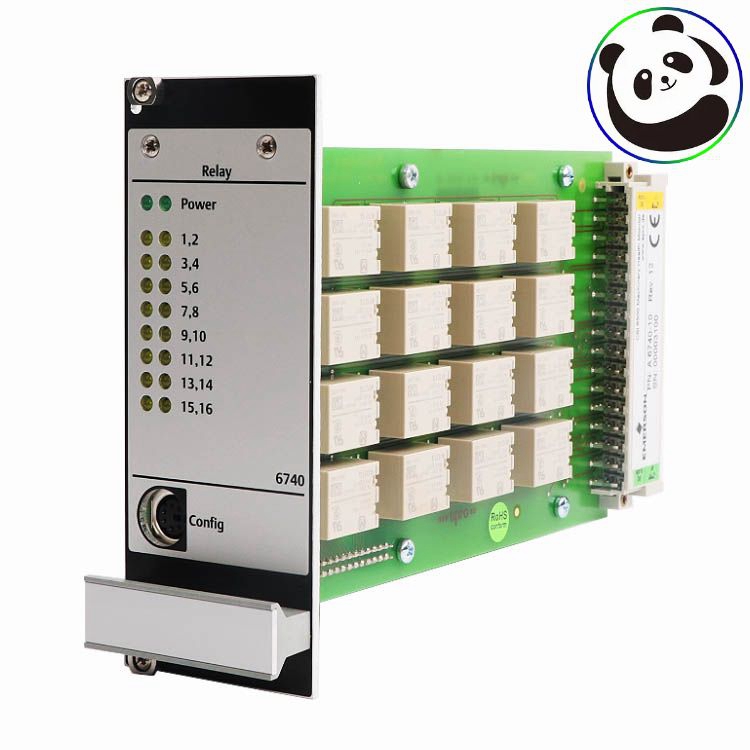

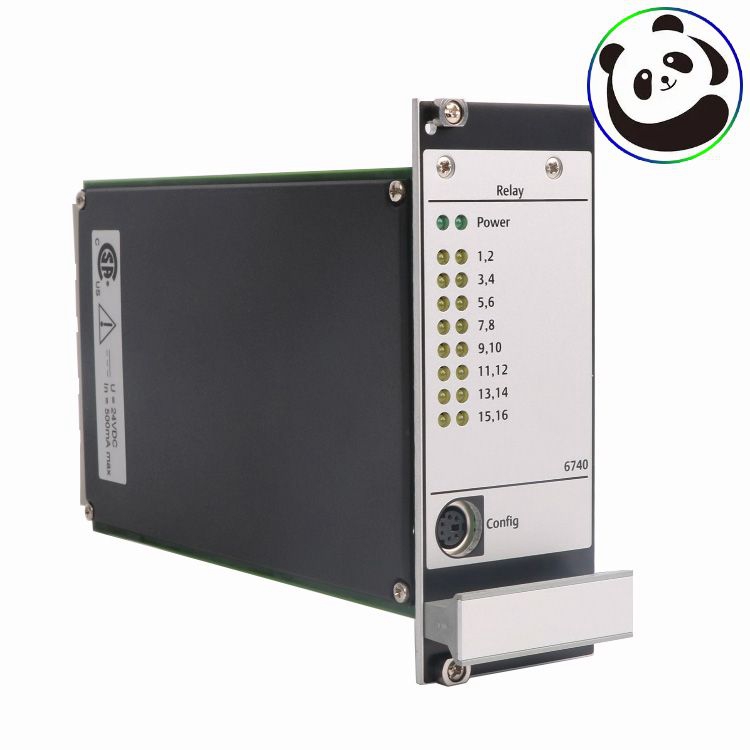

Online Maschinen Überwachung Module EMERSON A6740-10 9199-00091 16-Kanal Relaiskarte (10TE) 16-Channel Output Relay Module for the AMS 6500 Machinery Health Monitor

The EMERSON A6740-10 9199-00091 16-Kanal Relaiskarte (10TE) is a 16-channel output relay module designed for high reliability for the plant's most critical rotating machinery [3]. This module is used together with the AMS 6500 to build a complete API 670 machinery protection monitor [4]. The module has the following specifications and features:

Specifications:

• Input: 60 inputs
• Input type: Channel clear, alarm, and danger
• Output: Relay 1-16
• Time delay: 0-30 seconds
• Size (W x H x L): 60 mm x 128.4 mm x 160 mm
• Total weight: About 450 grams (0.992 pounds)
• Operating temperature: 0 to 65°C (32 to 149°F)
• Storage temperature: -40 to 70°C (-40 to 156°F)
• Relative humidity: 5-95%, non-condensing
• Shock: 98 m/s² (9.98 g peak), 16 milliseconds
• Vibration: 0.15 mm (10-55 Hz), 19.6 mm/s² (55-150 Hz)

The 16-Channel Output Relay Module is designed for high reliability for the plant’s most critical rotating machinery. This 2-slot monitor is used together with the AMS 6500 to build a complete API 670 machinery protection monitor. Applications include steam, gas, compressors and hydro turbo machinery. Easy-to-use software provides graphical logic displays that guide the user pictorially through configuration.

A6740        16-Kanal Relaiskarte (12 TE) 9199-00035

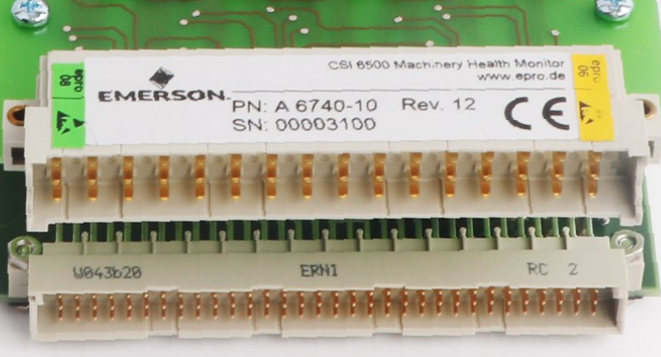

A6740-10  16-Kanal Relaiskarte (10 TE) 9199-00091

• Inputs
• 60 inputs of type: channel clear, alert and danger
• Outputs
• Relay 1-16
• Time Delay
• 0-30 seconds
• Handle
• Easily remove card and provide plate for module and sensor identification
• Dimensions (W x H x L)
• 60 mm x 128.4 mm x 160 mm
• Gross Weight
• app 450 g (0.992 lbs)
• Operating Temperature
• 0 to 65°C (32 to 149°F)
• Storage Temperature
• -40 to 70°C (-40 to 156°F)
• Relative Humidity
• 5-95%, non condensing
• Shock
• 98 m/s² (9.98 g’s peak), 16 msec
• Vibration
• 0.15 mm (10-55HZ), 19.6 mm/s² (55-150 Hz)
