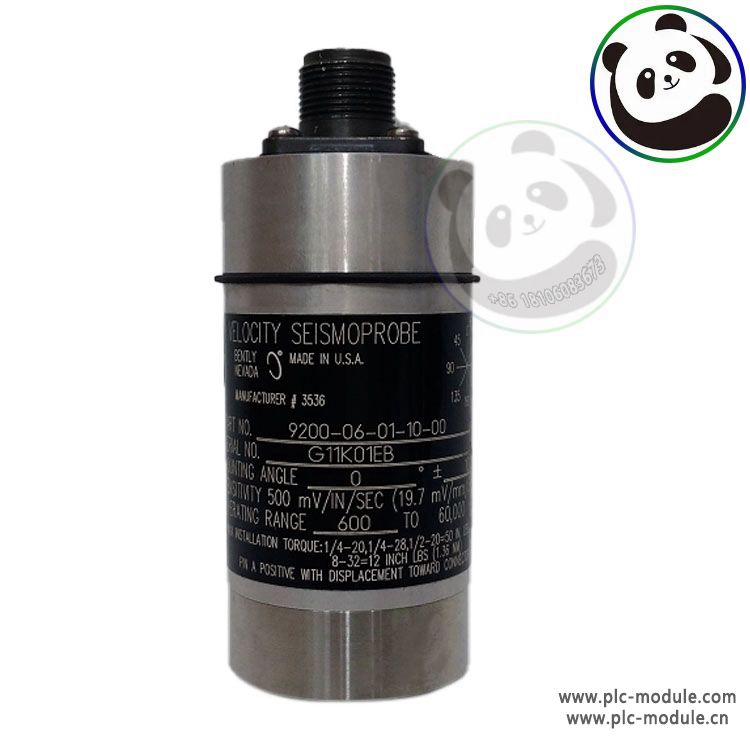

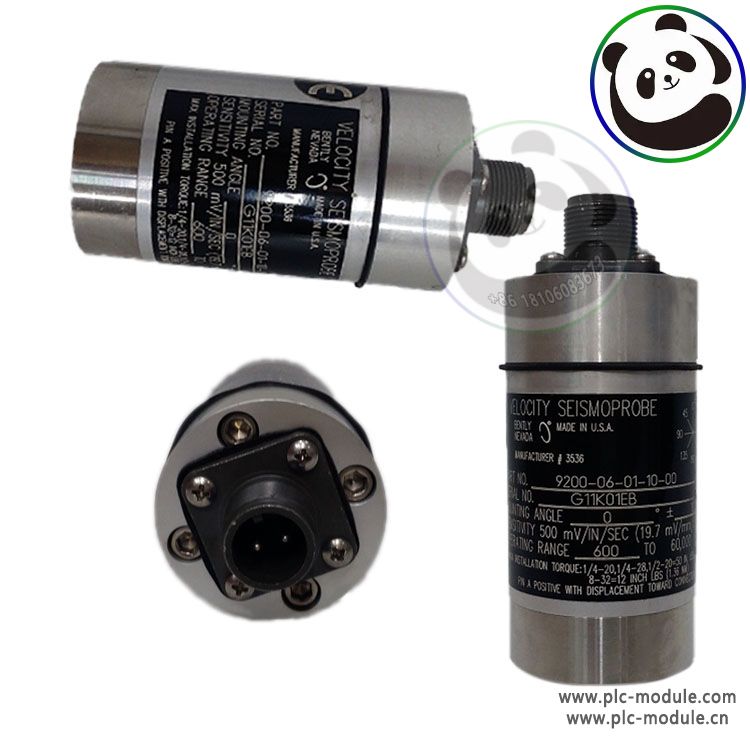

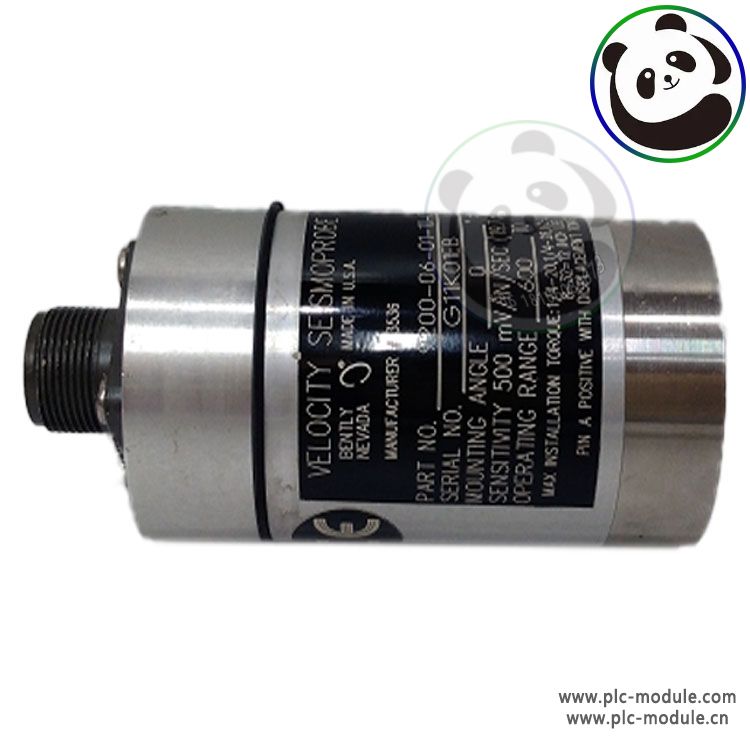

Bently 9200-06-01-02-00 velocity sensor.The Bently Nevada 9200 is a velocity sensor that measures bearing housing, casing, and structural vibration. It is a two-wire sensor that is suitable for continuous monitoring, periodic measurement, and can be used with testing or diagnostic instruments.The 9200 uses moving-coil technology to provide a voltage output that is directly proportional to the transducer's vibration velocity.This type of transducer is less sensitive to impact excitation than integrating accelerometers and can be appropriate for certain applications.

The 9200 and 74712 sensors are two types of sensors available. Both sensors offer convenience when taking portable measurements as neither device requires external power.The 9200 sensor is qualified for a range from -29°C to +121°C (-20°F to +250°F), while the 74712 high-temperature sensor is qualified for a range of -29°C to +204°C (-20°F to +400°F) .Both sensors offer 20 mV/mm/s (500 mV/in/s), ±5% when properly terminated and oriented at the angle of calibration.Transverse sensitivity is 10% or less of axial sensitivity. Both sensors withstand mechanical shocks up to 50 g peak along the non-sensitive transverse axis.The frequency range of the sensors ranges from a minimum operating frequency of 4.5, 10, or 15 Hz to a maximum of 1 kHz (60,000 cpm) with a +0, -3dB typical.

The 9200 sensor is available in a range of models, including 9200-06-05-10-00 and 9200-01-01-10-00. The 9200-06-01-10-00 sensor and extension line 84661-25 are available on Alibaba. Alibaba also offers the 9200-06-06-02-00 sensor.

Bently Nevada 9200 is a two-wire velocity sensor that measures bearing housing, casing, and structural vibration. It is suitable for continuous monitoring, periodic measurement, and can be used with testing or diagnostic instruments. The 9200 uses moving-coil technology to provide a voltage output that is directly proportional to the transducer's vibration velocity. The frequency range of the sensors ranges from a minimum operating frequency of 4.5, 10, or 15 Hz to a maximum of 1 kHz (60,000 cpm) with a +0, -3dB typical. The 9200 is available in a range of models, including 9200-06-05-10-00 and 9200-01-01-10-00.
