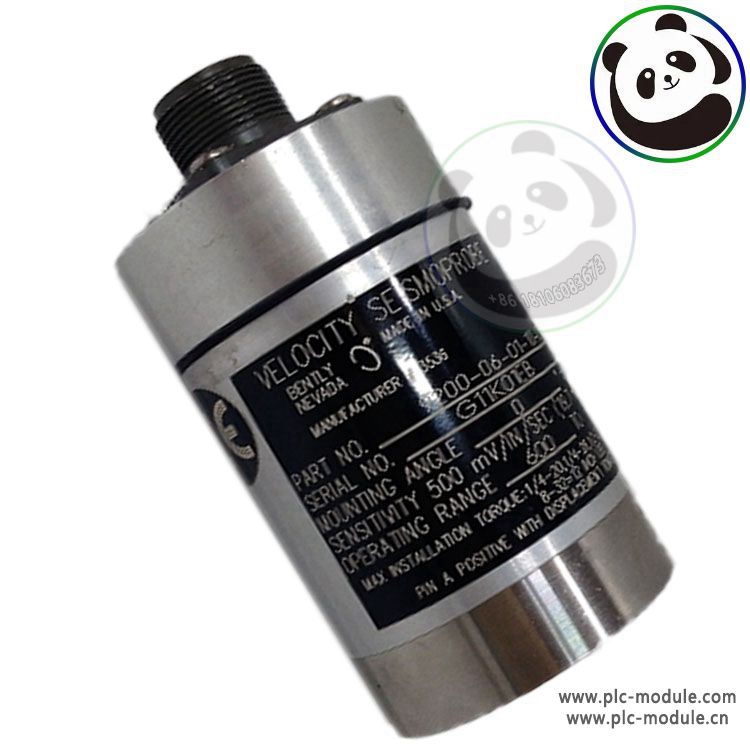

Bently 9200-09-01-02-01 is a velocity sensor designed for continuous monitoring or periodic measurements in conjunction with a test or diagnostic instrument.The sensor system measures relative vibration of bearing housing, casing, or structural vibration. The two-wire system consists of a transducer and an appropriate cable.It is a two-wire design that uses moving-coil technology, which provides a voltage output directly proportional to the transducer's vibration velocity.

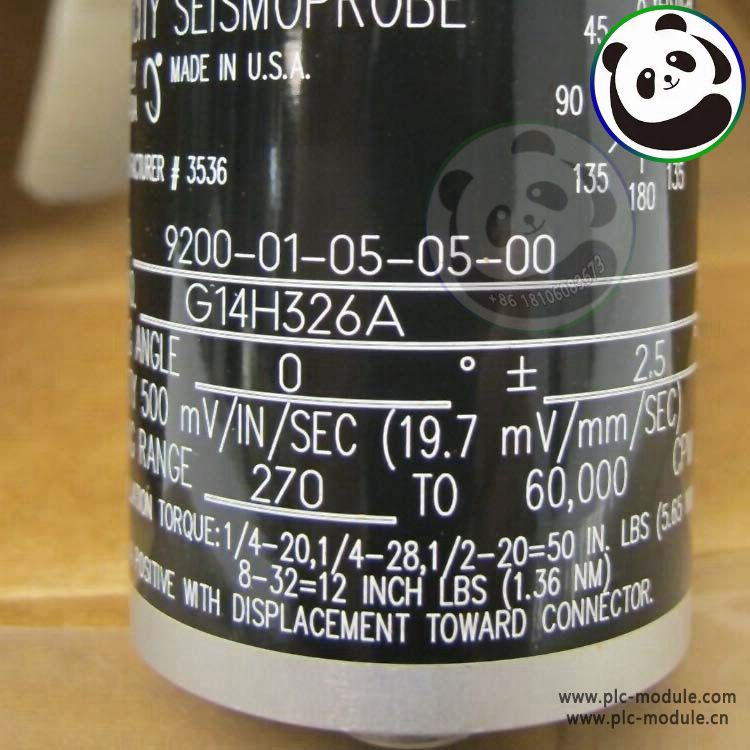

This velocity sensor is a two-wire sensor that does not require external power, making it convenient for portable measurement applications.The sensor has excellent resistance to corrosive environments without the need for additional protection, which is an added advantage.The 9200 offers 20 mV/mm/s (500 mV/in/s), ±5% when properly terminated and oriented at the angle of calibration.Transverse sensitivity is 10% or less of axial sensitivity. Both sensors withstand mechanical shocks up to 50 g peak along the non-sensitive transverse axis.

The Bently Nevada 9200-09-01-02-01 velocity sensor is a common model of the Bently 9200 velocity sensor series.It is a two-wire sensor that uses moving-coil technology, which provides a voltage output directly proportional to the transducer's vibration velocity.The output voltage is directly proportional to the velocity of the vibration, which makes it ideal for measuring vibration in bearings, shafts, and other machinery components.

In addition to the Bently Nevada 9200, there are various other velocity sensors available in the market. Some of the commonly used velocity sensors are:

The 330500 Velomitor, which is a rugged, 2-pin, integrating piezo-accelerometer that is especially suited for condition monitoring of machines with rolling-element bearings and where vibration measurements in units of velocity are most useful.

The 190501 Velomitor CT is a low-frequency velocity sensor modeled off the standard 330500 Velomitor, with a sensor for use in hazardous areas.

The 330750 and 330752 High-Temperature Velocity Sensors offer a unique design with the sensing element segregated from the signal conditioning electronics.

The 330525 Velomitor XA Piezo-Velocity Sensor is a more robust version of the 330500 Velomitor - for when you need to data from harsher environments

The 350900 High-Temperature Velocity and Acceleration Sensor (HTVAS) provides a continuous acceleration and velocity output, allowing the customer to protect their machine with a velocity signal while simultaneously capturing the acceleration signal for machinery diagnostics.

Bently Nevada 9200-09-01-02-01 is a velocity sensor designed for continuous monitoring or periodic measurements in conjunction with a test or diagnostic instrument. It is a two-wire sensor that uses moving-coil technology, which provides a voltage output directly proportional to the transducer's vibration velocity. The output voltage is directly proportional to the velocity of the vibration, which makes it ideal for measuring vibration in bearings, shafts, and other machinery components.
