Bently Nevada 3500/05-01-02-00-00-01 | Instrument Rack | 19 inches Big Rack

质保: 365天
质量:原装模组
状况: 全新/二手
仓库:现货
发货时间:付款后3天内发货
在线咨询
  • 产品详情

    .很多产品暂未上架 更多产品请联系我们

    .如产品型号与展示图片不一致,以型号为准。具体产品图片联系我们,我们会安排到仓库拍照确认

    .我们在全球有16个共享仓库,所以有时需要几个小时才能给您准确答复,当然,我们会尽快回复您的疑虑

    Bently Nevada 3500/05-01-02-00-00-01 | Instrument Rack |  19 inches Big Rack.

    The 3500 System provides continuous, online monitoring suitable for machinery protection applications, and is designed to fully meet the requirements of the American Petroleum Institute’s API 670 standard for such systems. It represents our most capable and flexible system in a traditional rack-based design, and represents numerous features and advantages not provided in other systems. The system’s highly modular design consists of:

    • 3500/05 Instrument Rack (required)

    • One or two 3500/15 Power Supplies (required)

    • 3500/22M Transient Data Interface or 3500/20 Rack Interface Module (required)

    • One or two 3500/25 Keyphasor® Modules (optional)

    • 3500 Rack Configuration Software (required)

    • One or more 3500/XX Monitor Modules (required)

    • One or more 3500/32 Relay Modules or 3500/34 TMR Relay Modules (optional)

    • One or more 3500/92 Communication Gateway Modules (optional)

    • 3500/93, 3500/94, or 3500/95 display OR 3500 Operator Display Software running on a compatible PC (optional)

    • Internal or external intrinsic safety barriers, or galvanic isolators for hazardous area installations (optional) These are described in more detail in the following section and in the individual datasheets for each system component.

    Bently Nevada 3500 Series on-line Machinery Monitoring System.jpg

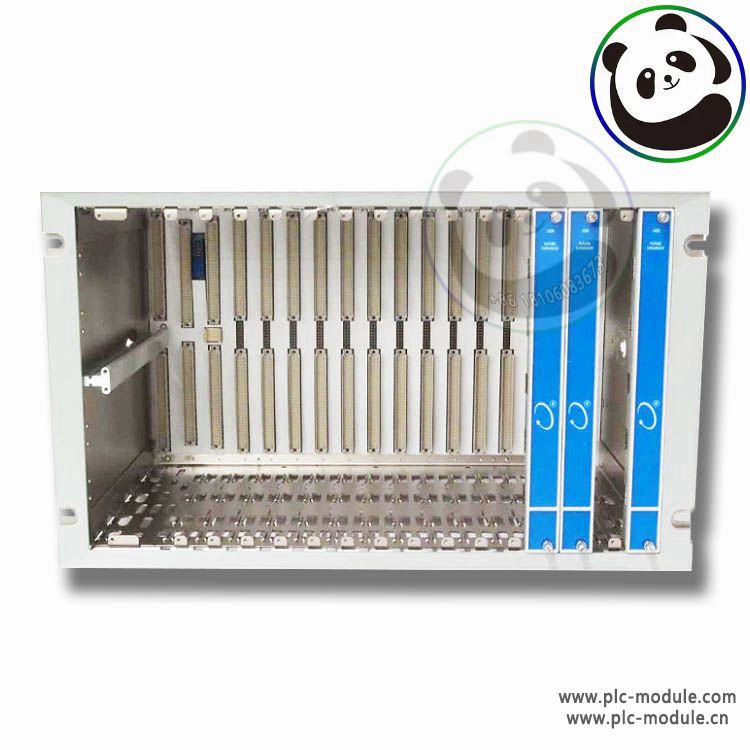

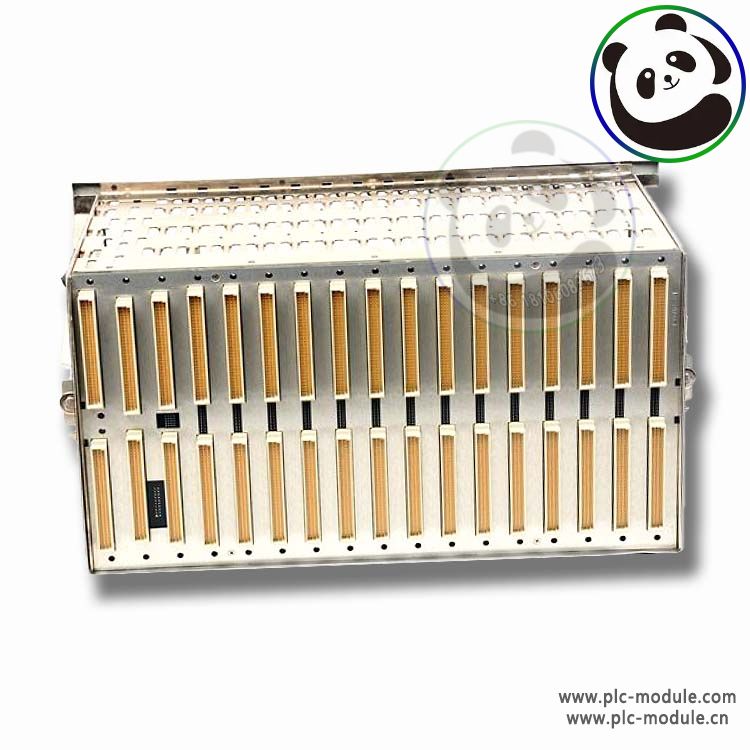

    The full-size 3500 Rack is available in 19” EIA railmount, panel-cutout-mount, and bulkhead-mount versions. The rack provides slots for two Power Supplies and a Rack Interface Module in the left-most rack positions that are reserved exclusively for these modules. The remaining 14 slots in the rack can accommodate any combination of monitor, display, relay, Keyphasor module, and communications gateway modules. All modules plug into the rack’s backplane and consist of a main module and an associated I/O module. The I/O module installs at the rear of the rack for panel-mount systems, and above the main module for bulkhead-mount systems.

    The rack depth is 349 mm (13.75 inches) and NEMA 4 and 4X weatherproof housings are available when required for environmental protection or when purge air is used. A mini-rack (12” wide instead of 19”) is also available and features 7 available monitor slots instead of 14. Like its larger counterpart, the left-most slots are reserved for the Power Supply or Supplies and Rack Interface Module. The mini-rack may be mounted in a panel cutout or, using an optional adapter plate, on 19” EIA mounting rails. Bulkhead mounting is not available.

    BENTLY 3500-05 System Rack 350005...jpg

    Bently Nevada 3500/05-01-02-00-00-01 | Instrument Rack |  19 inches Big Rack

    BENTLY 3500-05 System Rack 350005..jpg
