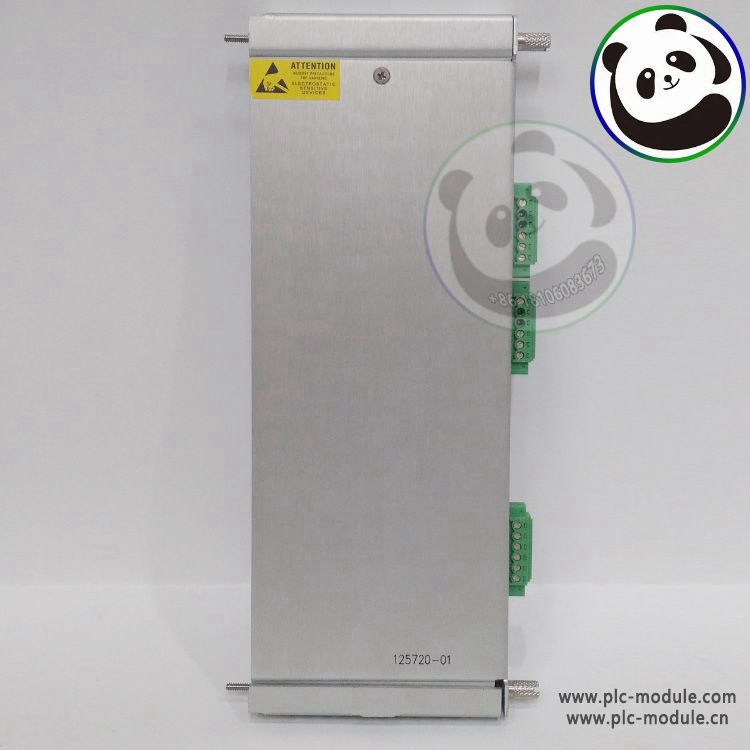

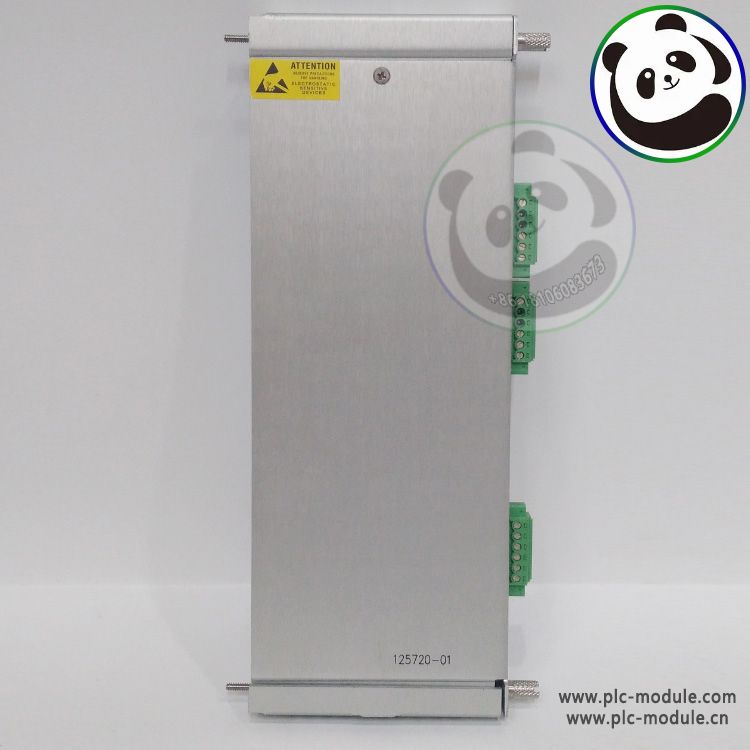

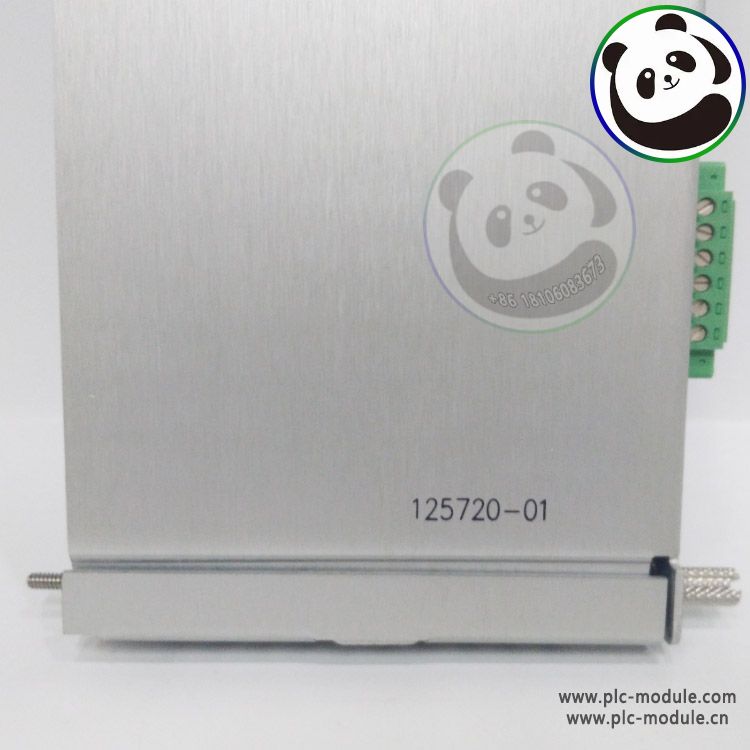

Bently 125720-01 | 4 CHANNEL RELAY I/O MODULE.The Bently 125720-01 is a spare 4-channel relay output module, which is part of the 3500/32M 4-Channel Relay Module produced by Bently Nevada 23. This module is designed to provide four relay outputs and can be installed in any slot to the right of the Transient Data Interface Module.

Each output of the 4-Channel Relay Module can be independently programmed to perform voting logic. Additionally, each relay utilized on the 4-Channel Relay Module includes Alarm Drive Logic, which can be programmed using AND and OR logic, and can accept alarming inputs (Alert and Danger statuses), Not-OK, or individual PPLs from any monitor channel or any combination of monitor channels in the rack.

The module operates under certain conditions such as complying with part 15 of the FCC Rules and European Community Directive: EMC Directive 2014/30/EU 2. It also meets standards like EN 61000-6-2 for immunity in industrial environments and EN 61000-6-4 for emissions in industrial environments.

The module is designed to work in temperatures ranging from -30°C to +65°C and can be stored within a temperature range of -40 to +85 degrees Celsius 4. Its dimensions are 241 mm (height) x 24.4 mm (width) x 99.1 mm (depth), and it has a weight of 0.4 kg.

Bently 125720-01 | 4 CHANNEL RELAY I/O MODULE
