Bently Nenada 330103-00-03-05-02-05 SENSOR CABLE

634
质保: 365天
质量:原装模组
状况: 全新/二手
仓库:现货
发货时间:付款后3天内发货
在线咨询
  • 产品详情

    .很多产品暂未上架 更多产品请联系我们

    .如产品型号与展示图片不一致,以型号为准。具体产品图片联系我们,我们会安排到仓库拍照确认

    .我们在全球有16个共享仓库,所以有时需要几个小时才能给您准确答复,当然,我们会尽快回复您的疑虑

    The Bently Nevada 330103-00-03-05-02-05 Sensor Cable is part of the 3300 XL 8mm Proximity Transducer System. This system is designed to measure both static (position) and dynamic (vibration) values, primarily used for vibration and position measurements on fluid film bearing machines, as well as Keyphasor reference and speed measurements.

    The 330103-00-03-05-02-05 Sensor Cable is a standard cable and comes with different total probe lengths: 0.5, 1, 1.5, 2, 3, 5, or 9 meters. The cable is a 75Ω triaxial, fluoroethylene propylene (FEP) insulated probe cable. An optional armor, flexible AISI 302 or 304 stainless steel with FEP outer jacket, can be added to both ends of the cable.


    The connector material for the cable is either gold-plated brass or gold-plated beryllium copper. The maximum rated tensile strength is 330 N (75 lbf) for the probe case to probe lead, and 270 N (60 lbf) at the probe lead to extension cable connectors.

    This sensor cable is compatible with other non-XL 3300 series 5mm and 8mm transducer system components, providing a high level of performance and supporting complete interchangeability of probes, extension cables, and Proximitor sensors.

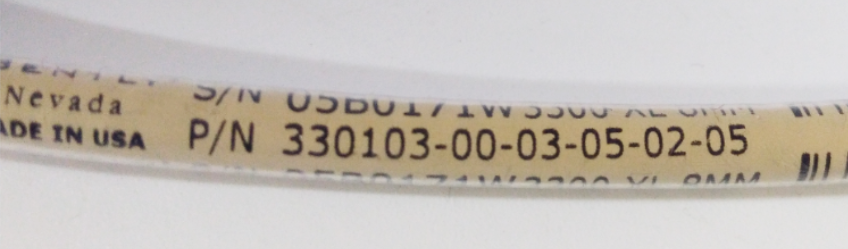

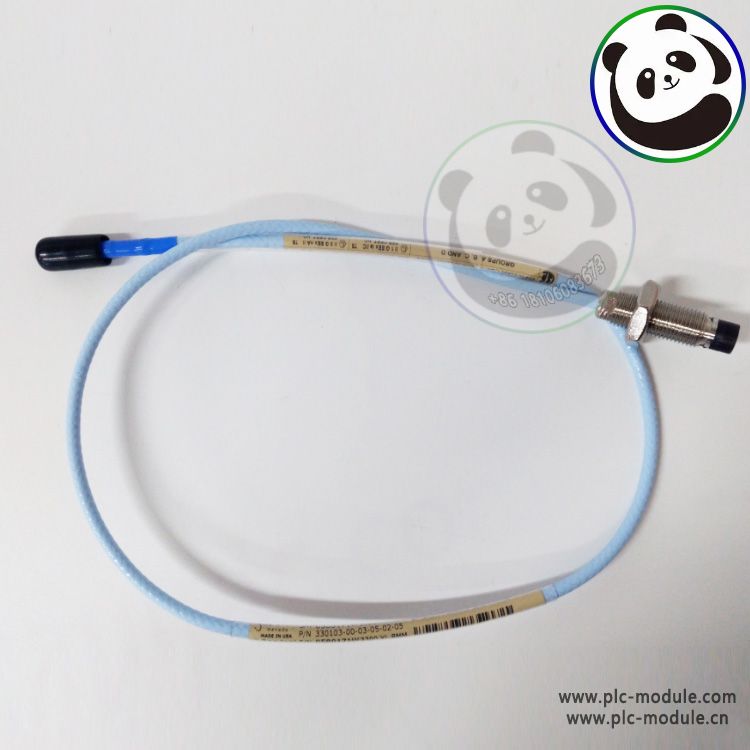

    Bently 330103-00-03-05-02-05 SENSOR CABLE.jpg
