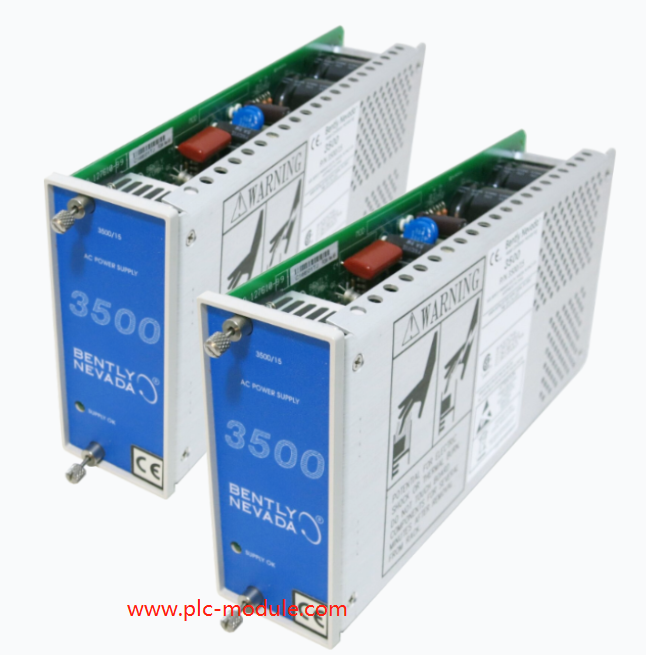

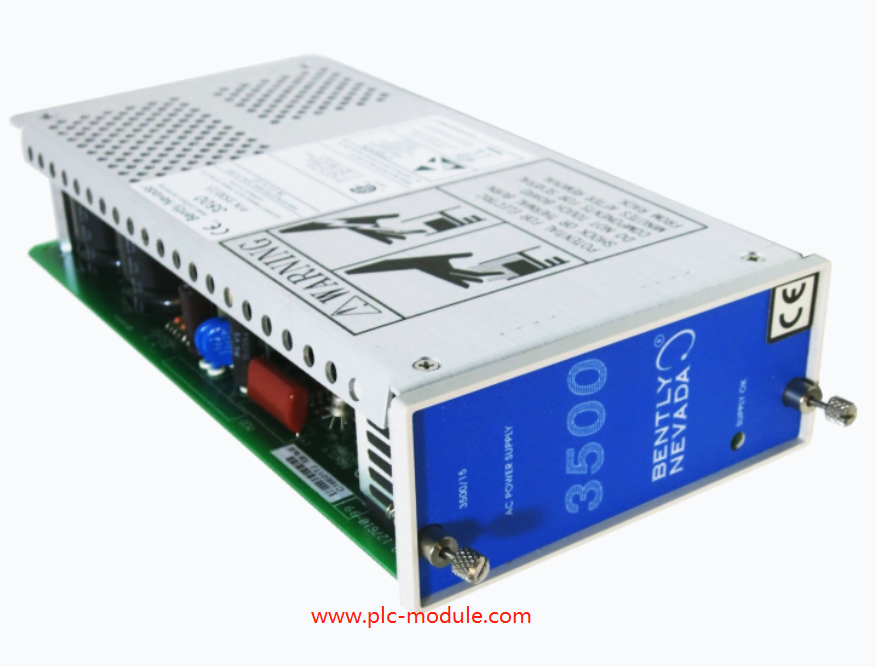

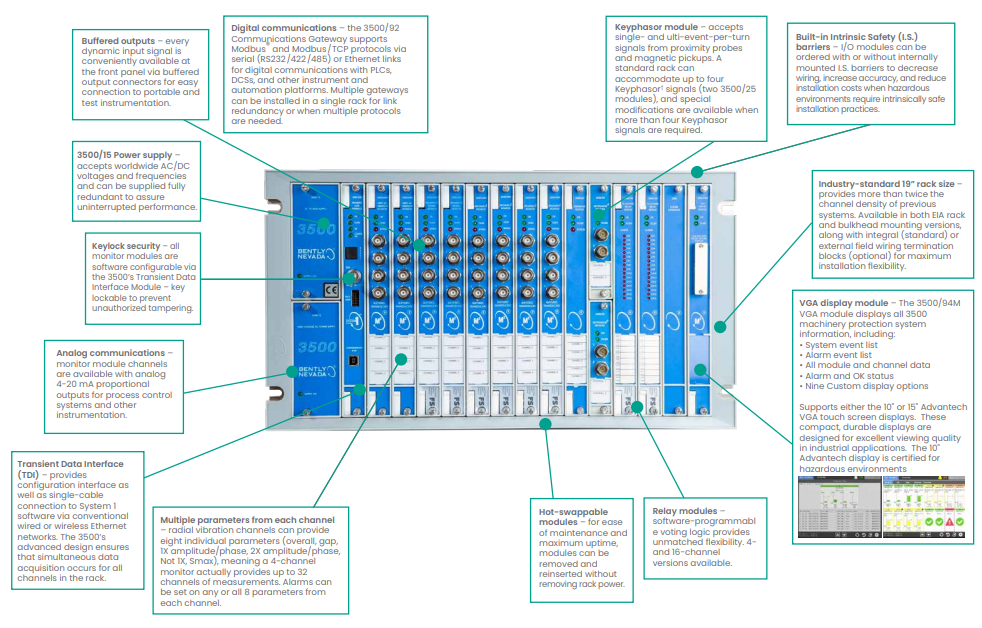

BENTLY 3500/15-05-05-00 Ac dual power supply.The US Bentley 3500 system is used for vibration monitoring and protection of large machinery. Bentley 3500 system must be equipped with frame 3500/05, power 3500/15, frame interface module 3500/22M,bently3500 high voltage AC 220V, spare parts are as follows 127610-01 AC power module

High Voltage AC Power Input Module (PIM)

Low Voltage AC Power Input Module (PIM)

129486-01 High voltage DC power supply module

129478-01 High Voltage DC Power Input Module (PIM)

133292-01 low voltage DC power supply module

Low Voltage DC Power Input Module (PIM)

Standby fuse (two types of AC PIM and HVDC PIM)

Standby fuse (low voltage DC PIM)

129767-01 Power supply operation and maintenance Manual

Bentley Power bently 3500/15 order information and model description are as follows:

3500/15-AXX-BXX-CXX option description

A: Type of power supply (upper notch)

01 Low voltage AC (85-132 Vac rms)

02 High voltage AC (175-264 Vac rms)

03 High voltage DC (88-140 Vdc)

04 Low voltage DC (20-30 Vdc)

05Universal AC power supply (85-264 Vac rms) (new)

B: Type of power supply (lower notch)

No power supply (only if single power supply is required)

01 Low voltage AC (85-132 Vac rms)

02 High voltage AC (175-264 Vac rms)

03 High voltage DC (88-140 Vdc)

04 Low voltage DC (20-30 Vdc)

05Universal AC power supply (85-264 Vac rms) (new)

C: Approve the unit option

00 None

01 CSA/NRTL/C

02 ATEX/IECEx/CSA (Class 1, Zone 2)

CN China

The specific model is as follows:

3500/15 (front panel 127610-01, back panel 125840-01)

Upper notch & lower notch are installed, so it is a dual power supply,

The upper notch is installed, the lower notch is not installed, so it is a single power supply

3500/15-05-05-00, upper notch & lower notch are installed, so it is a dual power supply

The following is the upgraded 3500/15 universal AC power module:

3500/15(front panel 106M1079-01, back panel 106M1081-01)

3500/15-05-05-00, upper notch & lower notch are installed, so it is a set of double power supply

3500/15-05-00-00, the upper notch is installed, the lower notch is not installed, so it is a single power supply

3500/15-05-05-cn (106m1079-01 * 2 + 106 m1081-01 * 2) Product type: 3500/15 Power supply made in USA. A CO (CO) Power supply type (top slot) : 05 = Universal AC voltage (85 to 264 VAC RMS) Power supply type (bottom slot) : 05 = General AC voltage (85 to 264 VAC RMS) cn = Country specific for approval (cn option Quick reference guide and site notification letter in download section) Operating temperature :-30 °c to + 65 °c Storage temperature :-40 °c to + 85 °c Condensability: 95%
