BENTLY 3500/25-01-03-00 Enhanced Keyphasor Module【3500/25-AXX-BXX-CXX】 To learn more about Bentley products, click here

3500/25PDF Download：

3500-25 -A00-B00-C00.pdf

• Manufacturer : Bently Nevada

• Product No. : 3500/25-01-03-00

• Product type : Enhanced Keyphasor Module

• Made in U.S.A

• Number of channels : 01 = Single half-height 2-channel Keyphasor card

• Type of I/O Module : 03 = Internal Barrier I/O with Internal Terminations

• Agency Approval Option : 00 = Not required

• Inputs Power Consumption : 3.2 Watts typical

• Output Impedance : 504 maximum buffered output impedance

• Storage Temperature : -40℃ to +85 ℃

• Humidity : 95%, non-condensing

• Operating Temperature : -30 ℃ to +65 ℃  when used with Keyphasor I/O Module other than the Internal Barrier version. 0 ℃ to +65 ℃ when used with Keyphasor Internal Barrier I/O Module (Internal Termination)

• Dimensions ( Height x Width x Depth) : 11.99 cm x 2.44 cm x 25.65 cm (4.72 in x 0.96 in x 10.10 in)

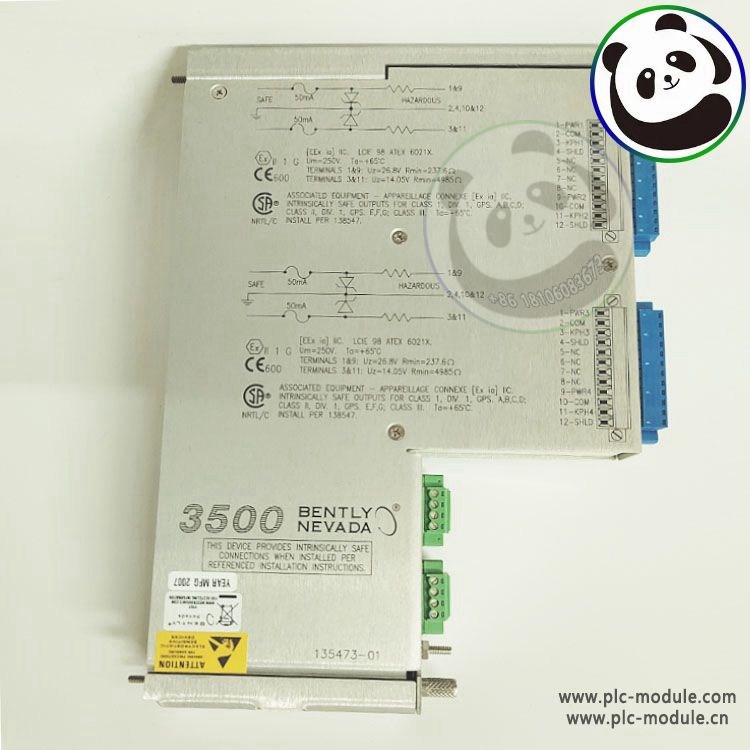

BENTLY 3500/25-01-03-00 Enhanced Keyphasor Module (149369-01 & 135473-01)

3500/25-AXX-BXX-CXX

A: Number of channels

01-Single half-height 2-channel Keyphasor card (order for 2- channels)

02-Two half-height 2-channel Keyphasor cards (order for 4- Channels)

B: Type of I/O Module

01-I/O module with Internal Terminations

02-I/O module with External Terminations

03-Internal Barrier I/O with Internal Terminations

04-Isolated I/O module with Internal Terminations (Designed for use with Magnetic Pickups)

05-Isolated I/O module with External Terminations (Designed for use with Magnetic Pickups)

C: Agency Approval Option

00-Not required

01-CSA/NRTL/C (Class 1, Div 2)

02-ATEX/CSA (Class 1 Zone 2)

External Termination Blocks

128718-01 Keyphasor External Termination Block (Euro Style Connectors)

128726-01 Keyphasor External Termination Block (Terminal Strip Connectors)

Cables

3500 Keyphasor (KPH) Signal to External Termination (ET) Block Cable

129530-AXXXX-BXX

A: Cable Length

00055-feet (1.5 metres)

00077-feet (2.1 metres)

001010 feet (3 metres)

002525-feet (7.5 metres)

005050-feet (15 metres)

0100100-feet (30.5 metres)

B: Assembly Instructions

01-Not assembled

02-Assembled

Spares

149369-01 Enhanced Keyphasor Module （Note: This module may be ordered as a direct plug-in replacement for Keyphasor Module 125792-01.）

125800-01 Keyphasor I/O Module (Internal Terminations)

126648-01 Keyphasor I/O Module (External Terminations)

125800-02 Isolated Keyphasor I/O Module (Internal Terminations) (Designed for use with Magnetic Pickups)

126648-02 Isolated Keyphasor I/O Module (External Terminations) (Designed for use with Magnetic Pickups)

135473-01 Keyphasor I/O Module (Internal Barriers and Internal Terminations.

04425545 Grounding Wrist Strap (single use)

00580438 Connector Header, Internal Termination, 4-Position, Green

00502133 Connector Header, Internal Termination, 12-Position, Blue

129770-01 Keyphasor Module Manual

Half-height Card Adaptor:

125388-01 Half-height Chassis

125565-01 Card Guide

04300111 Assembly Screws (Order Qty. 3)
