BENTLY 3500/20-01-01-00 Rack Interface Module.Configuration Keylock，Used to place 3500 rack in either "RUN" mode or "PROGRAM" mode. RUN mode allows for normal operation of the rack and locks out configuration changes. PROGRAM mode allows for normal operation of the rack and also allows for local or remote rack configuration. The key can be removed from rack in either position, allowing switch to remain in either RUN or PROGRAM positions. Locking switch in the RUN position allows you to restrict unauthorized rack reconfiguration. Locking switch in PROGRAM position allows remote configuration of a rack at any time.

Description：The Rack Interface Module (RIM) is the primary interface to the 3500 rack. It supports a proprietary protocol used to configure the rack and retrieve machinery information. The RIM must be located in slot 1 of the rack (next to the power supplies). The RIM supports compatible Bently Nevada external communications processors such as TDXnet, TDIX, and DDIX.  While the RIM provides certain functions common to the entire rack, the RIM is not part of the critical monitoring path and has no effect on the proper, normal operation of the overall monitoring system. One RIM is required per rack. For Triple Modular Redundant (TMR) applications, the 3500 System requires a TMR version of the RIM. In addition to all the standard RIM functions, the TMR RIM also performs "monitor channel comparison."  The 3500 TMR configuration implements monitor voting using the setup specified in the monitor options. Using this method, the TMR RIM continually compares the outputs from three (3) redundant monitors. If the TMR RIM detects that the information from one of those monitors is no longer within a configured percentof the information of the other two monitors, it will flag that the monitor is in error and place an event in the System Event List.

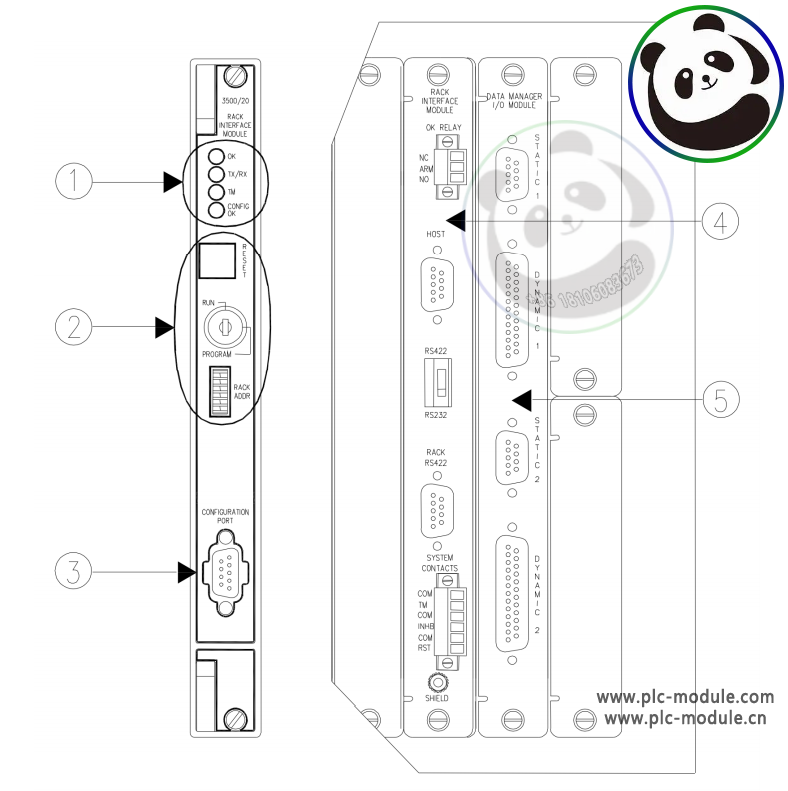

1. LEDs: Indicate the operating status of the module

2.  Hardware Switches:

3. Configuration Port: Configure or retrieve machinery data from only this rack using RS-232 protocol.

  4. Rack Interface I/O Module: Daisy chain or configure racks using RS-232 and RS-422 protocol

  5. Data Manager I/O Module: Connect two Bently Nevada Communication Processors to the 3500 rack.
