The Bently Nevada 3500/22M Transient Data Interface (TDI) module serves as the interface between the 3500 monitoring system and compatible software 3. This module combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.

The TDI resides in the slot adjacent to the power supplies of a 3500 rack. It interfaces with M series monitors (such as 3500/40M, 3500/42M, etc.) to continuously collect steady state and transient dynamic (waveform) data. This data is then passed through an Ethernet link to the host software.

The TDI also has static data capture capability. Using an optional Channel Enabling Disk allows the TDI to capture dynamic and high-resolution transient data 3.

It's important to note that although the TDI provides certain functions common to the entire rack, it is not part of the critical monitoring path and does not affect the proper, normal operation of the overall monitor system for automatic machinery protection.

DOWNLOAD：

Bently 3500-22M.pdf

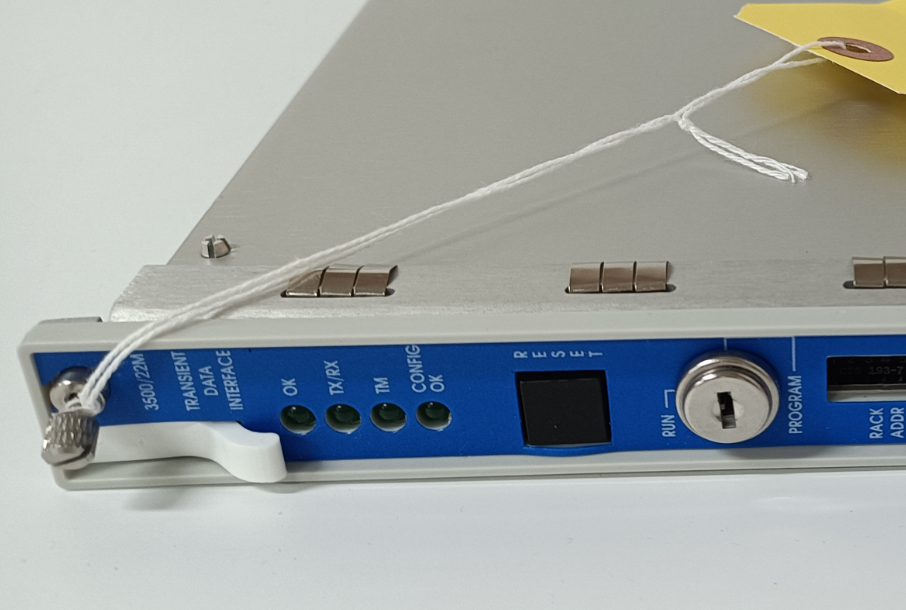

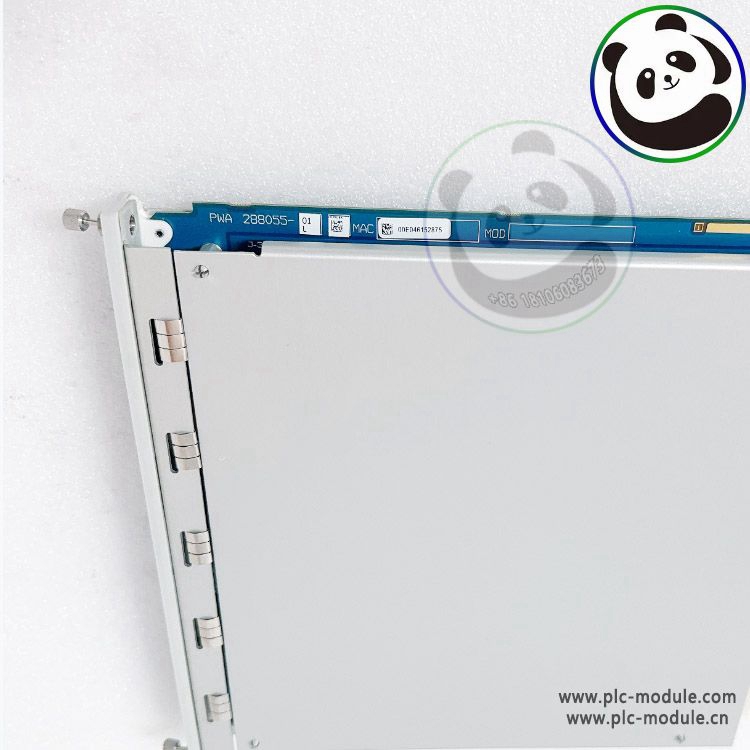

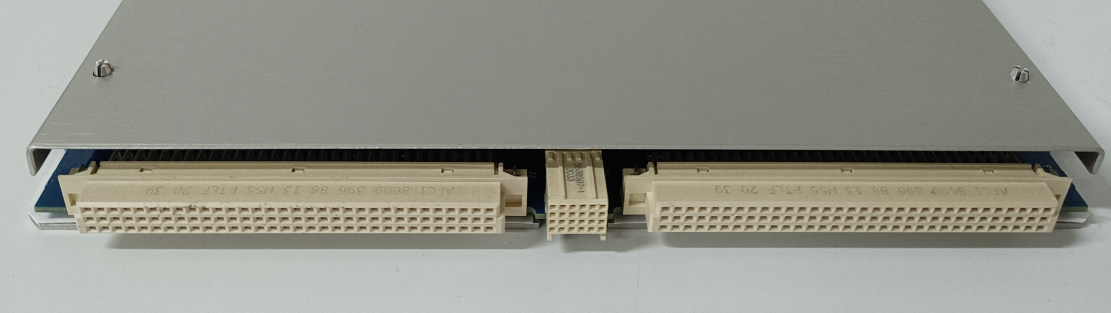

Bently Nevada 288055-01 3500/22M Transient Data Interface Module

Bently Nevada 288055-01 3500/22M Transient Data Interface Module
