BENTLY 本特利

BENTLY NEVADA 3500/15 POWER MODULE

质保： 365天
质量：原装模组
状况：全新/二手
仓库：现货
发货时间：付款后3天内发货
在线咨询

产品详情

.很多产品暂未上架更多产品请联系我们

.如产品型号与展示图片不一致，以型号为准。具体产品图片联系我们，我们会安排到仓库拍照确认

.我们在全球有16个共享仓库，所以有时需要几个小时才能给您准确答复，当然，我们会尽快回复您的疑虑

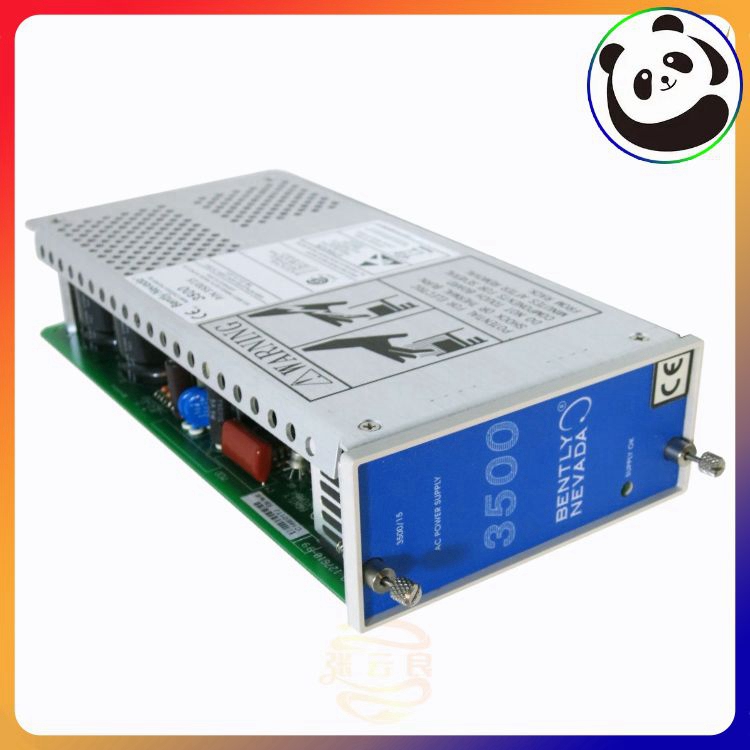

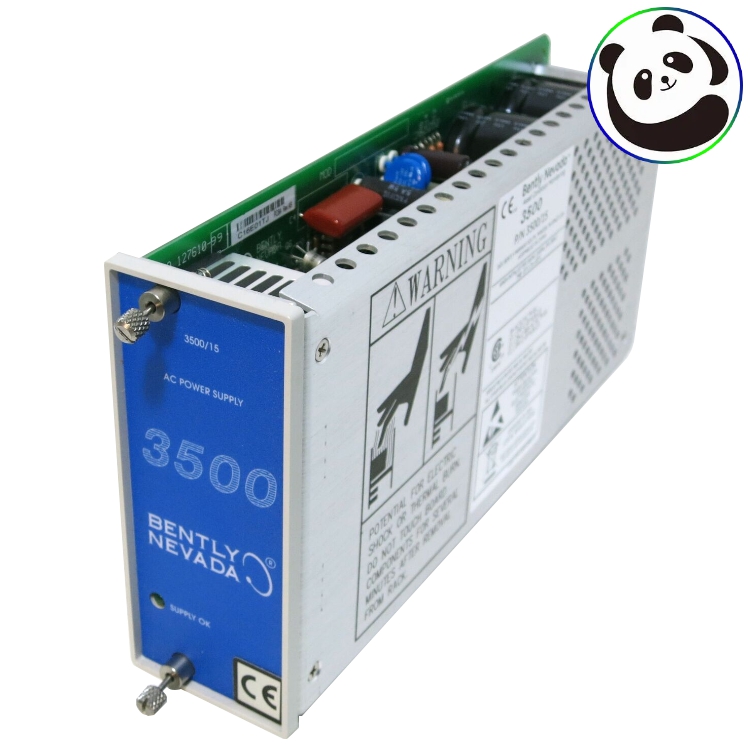

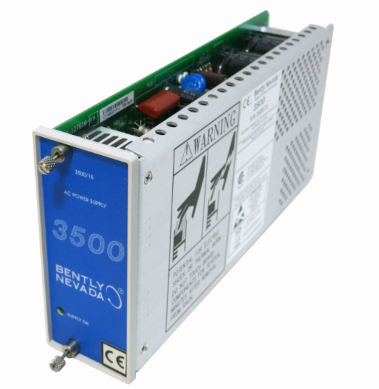

BENTLY NEVADA 3500/15 POWER MODULE 3500-15-A00-B00-C00，The 3500 system has dual power supplies to ensure stable and continuous operation of the system. Each power supply can supply power for the system independently.

bently 3500.png

3500/15

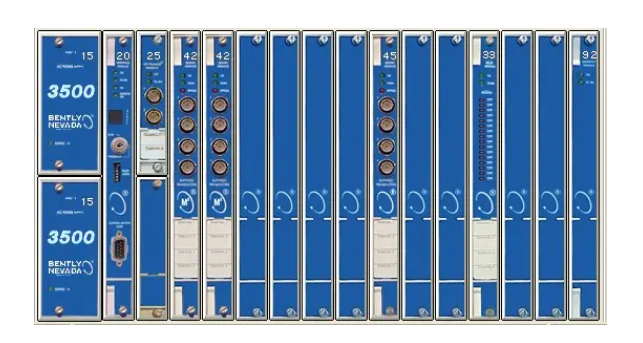

Bentley 3500 system is used for vibration monitoring and protection of large machinery. Bentley 3500 system must be equipped with frame 3500/05, power 3500/15, frame interface module 3500/22M.

bently3500 Bentley power high voltage AC 220V, spare parts as follows

127610-01 AC power module

125840-01 High-Voltage AC Power Input Module (PIM)

125840-02 Low-Voltage AC Power Input Module (PIM)

129486-01 High voltage DC power module

129478-01 High Voltage DC Power Input Module (PIM)

133292-01 Low voltage DC power module

133300-01 Low Voltage DC Power Input Module (PIM)

Spare fuse (two types of AC PIM and HVDC PIM)

01720045 Spare Fuse (Low voltage DC PIM)

129677-01 Power Operation and Maintenance manual

The order information and model of Bentley power supply bently 3500/15 are as follows:

3500/15-AXX-BXX-CXX option description

A: Power supply type (upper notch)

Low voltage AC (85-132 Vac rms)

02 High Voltage AC (175-264 Vac rms)

High voltage direct current (88-140 Vdc)

Low voltage DC (20-30 Vdc)

05 Universal AC Power Supply (85-264 Vac rms) (New)

B: Power supply type (lower notch)

No power supply (only used if single power supply is required)

Low voltage AC (85-132 Vac rms)

02 High Voltage AC (175-264 Vac rms)

High voltage direct current (88-140 Vdc)

Low voltage DC (20-30 Vdc)

05 Universal AC Power Supply (85-264 Vac rms) (New)

C: Approve the unit option

00 without

01 CSA/NRTL/C

02 ATEX/IECEx/CSA (Class 1, Zone 2)

CN China

Specific models are as follows:

3500/15 (front panel 127610-01, rear panel 125840-01)

3500/15-02-02-00, upper notch and lower notch are installed, so dual power supply,

3500/15-02-00-00, upper notch is installed, lower notch is not installed, so it is a single power supply

3500/15-05-05-00, upper notch and lower notch are installed, so it is dual power supply

The following is the upgraded 3500/15 universal AC power module:

3500/15(106M1079-01 front panel, 106M1081-01 rear panel)

3500/15-05-05-00, upper notch and lower notch are installed, so it is a set of double power supply

3500/15-05-00-00, upper notch is installed, lower notch is not installed, so it is a set of single power supply

3500/15-05-05-cn (106m1079-01 * 2 + 106m1081-01 * 2) Product Type: 3500/15 USA made electric supply. A CO (CEPA) Power Supply Type can be added (top slot) : 05 = Universal AC voltage (85 to 264 volts AC RMS) Power Supply Type (bottom slot) : 05 = General AC voltage (85 to 264 volts RMS) cn = Approved country specific (cn Options Quick Reference Guide and field notification letter in the download section) Operating Temperature :-30 °c to + 65 °c Storage Temperature :-40 °c to + 85 °c Condensation: 95%
