The 1753-L32BBBM-8A is a Safety Controller from the GuardPLC 1800 series. This controller has the most I/O points among GuardPLC controllers with 32 I/O points, 24 inputs and 8 outputs, none of which are electrically isolated. Output channels 4 and 8 can withstand 1 Amp of current at 60 degrees Celsius and the other channels are 0.5 Amps rated. The 1753-L32BBBM-8A controller also has 2 (not electrically isolated) high-speed counters with a 24-bit resolution. There are 250 KB of user program memory and 250 KB of application data memory installed to support microprocessor in fault processing. This device will detect a fault in their controlling system behavior and put all affected inputs and outputs from the faulty module to the safety state.

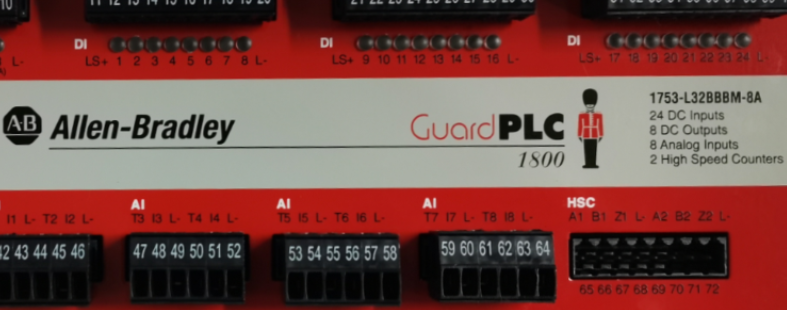

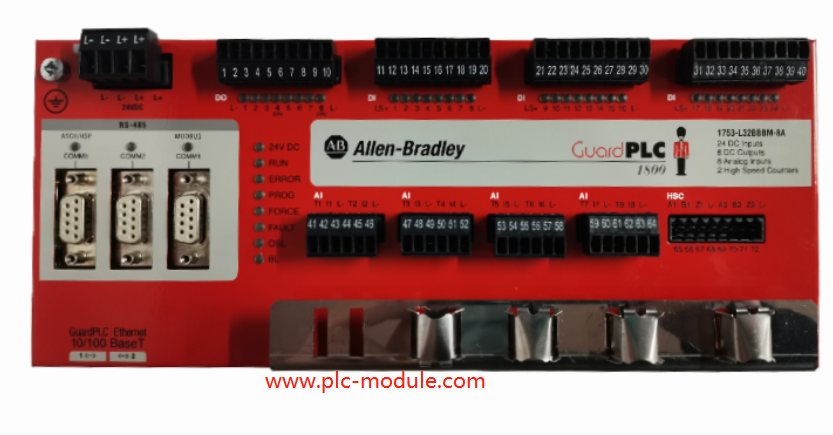

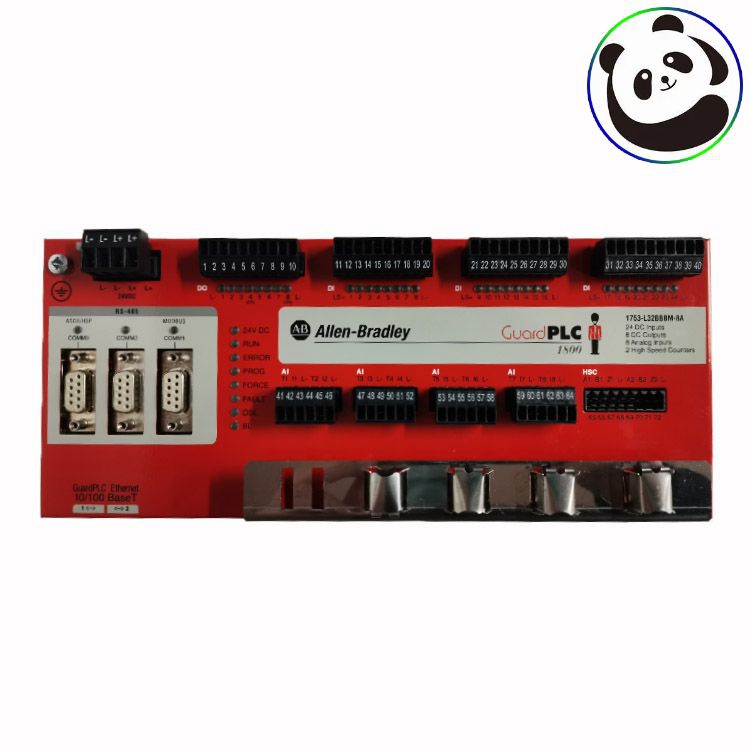

A-B 1753-L32BBBM-8A GuardPLC 1800 24DC ALLEN BRADLEY

1753-L32BBBM-8A

24 DC Inputs

8 DC Outputs

8 Analog Inputs

2 High Speed Counters
