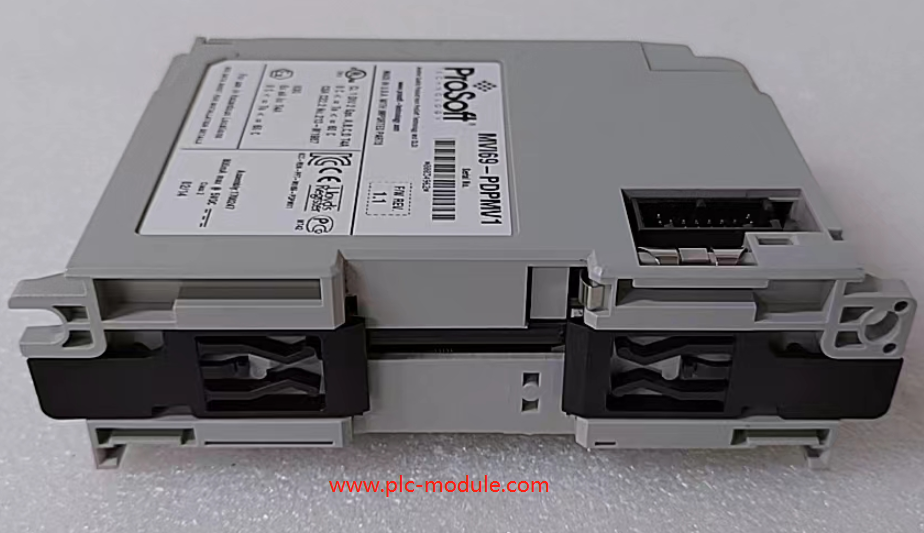

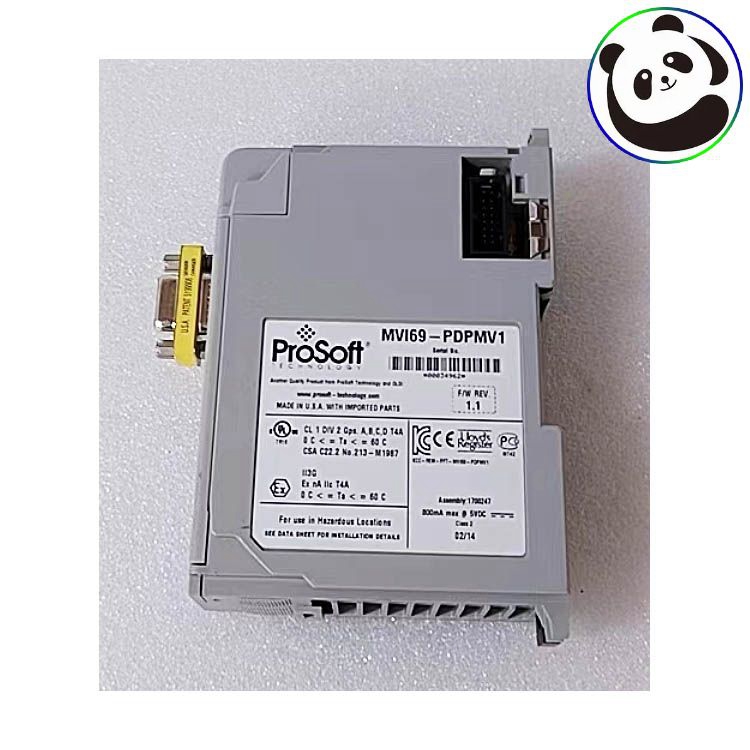

PROSOFT MVI69-PDPMV1 PROFIBUS DPV1 Master Communication Module The PROFIBUS DPV1 Master module is a powerful communication interface for Rockwell Automation® CompactLogix / MicroLogix processors. Developed under license from Rockwell Automation, the module incorporates proprietary backplane technology that enables powerful data exchange with CompactLogix / MicroLogix processors.

  The module supports complete Master specifications according to IEC 61158. Acyclic parameter data can be transferred with Class 1 or Class 2 DPV1 services, allowing processors to easily communicate with slave devices supporting PROFIBUS DPV0/V1 protocol.

The module acts as an input/output module between the PROFIBUS network and the CompactLogix / MicroLogix processor. Data transfer from the processor is asynchronous with the I/O data transfer on the PROFIBUS network.

Description

Prosoft PLC PROFIBUS DPV1 Master MVI69-PDPMV1

• Extended Product Type : Module
• Product ID: MVI69-PDPMV1
• Prosoft Type Designation : Module

Features and Benefits

• Single-slot – 1769 backplane compatible
• The module is recognized as an Input/Output module and has access to processor memory for data transfer between processor and module
• Ladder Logic is used for data transfer between module memory and processor controller tags. A sample ladder file with AOI is included
• Configuration data obtained from ProSoft Configuration Builder Software, which defines the PROFIBUS network, and then downloads the configuration to the module using the serial port of the PC
• Supports CompactLogix and MicroLogix 1500 LRP Controllers except 1769-QBFC1B, 1769-L16x, and 1769-L18x

Applications

With the growing usage of the PROFIBUS DPV1 protocol in the industrial marketplace, this product has a wide variety of application uses. Industries that use this technology include:

• Power and distribution applications
• Petrochemical
• Water and Gas Applications
• SCADA and DCS applications

Specification

• Dimensions :Standard 1769 Single-slot module
• Current Load : 800 mA max @ 5 VDC Power supply distance rating of 2 (L43 and L45 installations on first 2 slots of 1769 bus)
• Operating Temp : 32° F to 140° F (0° C to 60° C)
• Storage Temp : -40° F to 185° F (-40° C to 85° C)
